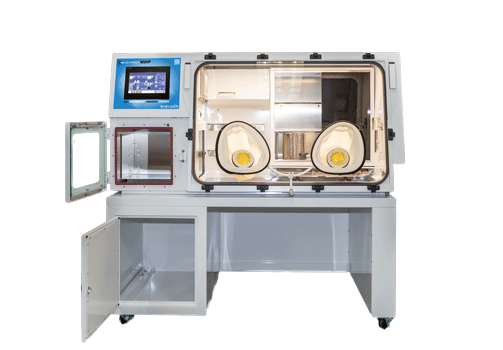

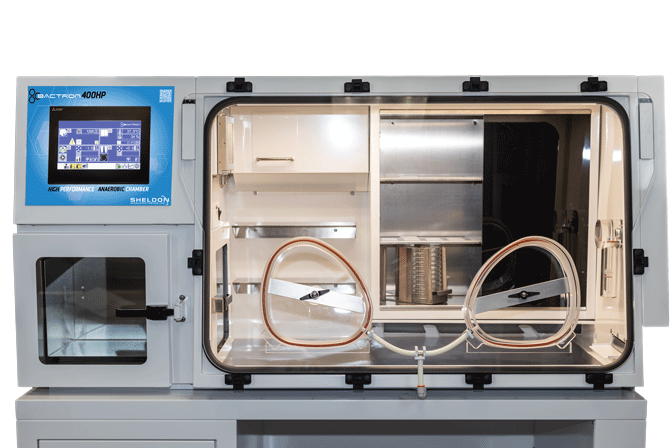

All new redesigned Bactron400HP anaerobic chamber system with an airlock, a 19.8 cu. ft. workspace and a 400-plate capacity incubator grant the BACTRON400HP delivers maximum productivity in a compact space. The operator will have total command of the work area with ample bench space for the efficient performance of all practices requiring an anaerobic atmosphere.
Our BACTRON systems have an airtight construction of stainless steel and rigid acrylic glass for unobstructed vision and integrity. Also, the unit cuffs form a comfortable seal around the operator’s arms to allow bare-hand manipulation of plates and specimens inside the working chamber, making research labor more ergonomic and efficient.
When sitting undisturbed at a steady state, a BACTRON typically rests at lower than 4.7 parts per million oxygen in the workspace chamber. The chamber atmosphere circulates through a condensate controller and then through a catalyst, which removes any trace amounts of oxygen. The high relative humidity is maintained while condensate moisture is removed without the unnecessary desiccants, which can dehydrate media and samples. Each unit contains an integral vacuum pump to provide rapid evacuation of air from the airlock module for replacement by an inert gas mixture.
Every Bactron400HP includes standard features that improve productivity, reproducibility, and sample protection and security. Those design elements include:

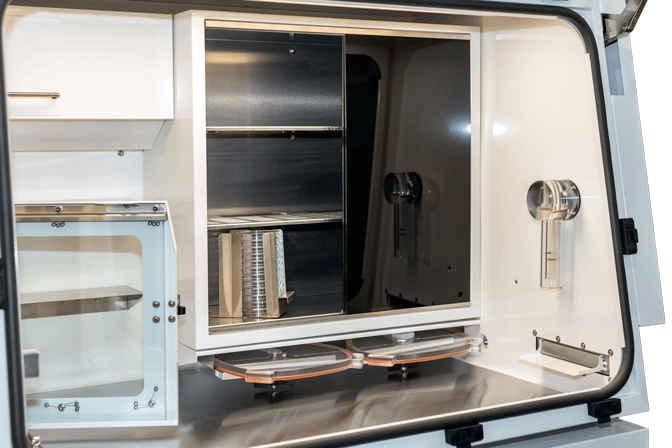

  • A dedicated incubator keeps the chamber work area close to room ambient temperatures; operators can work more comfortably even for extended periods.
  • Ergonomic arm ports provide the operator with a comfortable resting place and work angle.

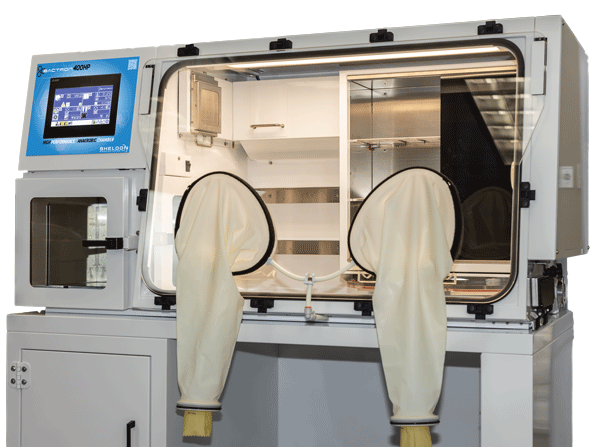

  • The gloveless sleeve design allows bare-handed manipulation of plates and specimens inside the Bactron400HP.
  • Every BACTRON meets globally recognized safety and quality standards including CE/TUV, EN61010, UL61010, and CAN/CSA61010.

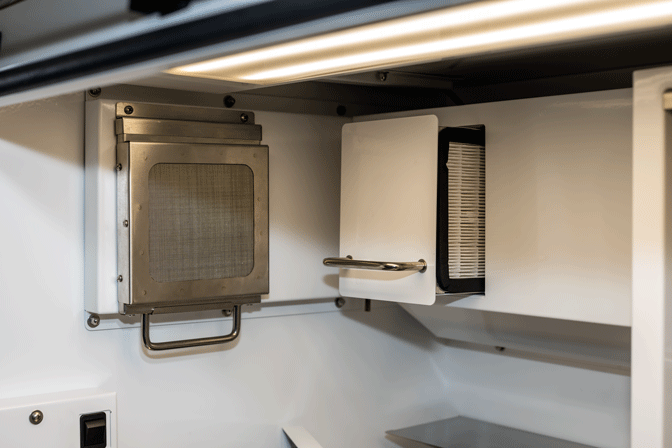

  • NEW HEPA filtration provides continuous treatment of workspace and incubator to ISO Class 3 standards.
  • NEW O2 sensor for the most accurate anaerobic performance.
  • NEW Relative Humidity (RH) sensor for the incubator.

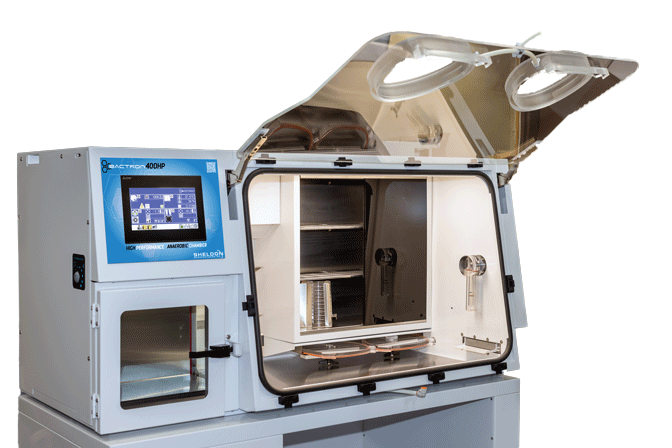

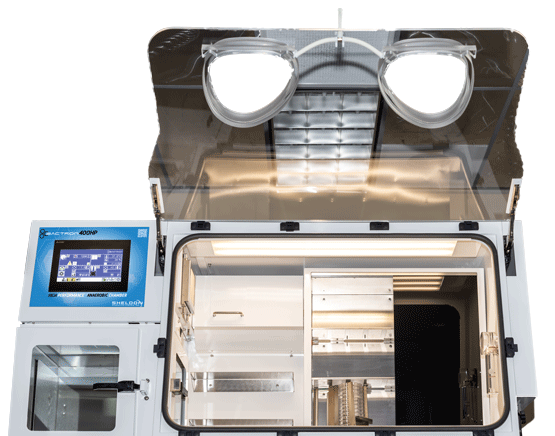

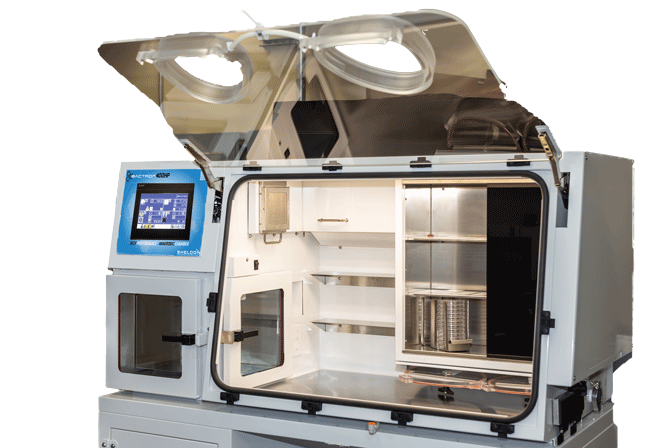

  • NEW Hinged Front Flange for easy loading of lab devices, supplies, and appliances; provides full access to all areas of the chamber and incubator for cleaning.
  • 400 plate capacity.
  • Standard KF40 Expansion Port for cable passthrough.
  • Independently certified to global safety, performance, and ISO standards.

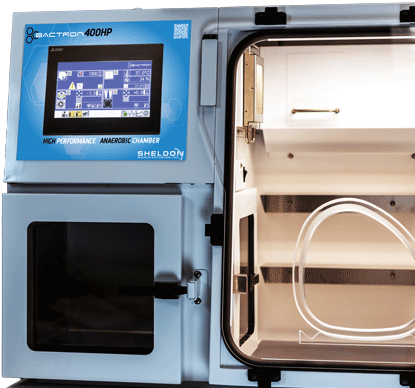

  • NEW 10.1 inches (26cm) Hi-Res multi-color touchscreen control:
  • Users can display three simultaneous data or performance readings.
  • Complete data logging for multiple performance levels to SD Card.
  • Password-protected security settings.
  • Easy Calibration to reference devices.
  • A high Clearance Chamber allows easy pipetting.
  • Full view front flange for easy observation into the chamber.
  • LED light with adjustable brightness.

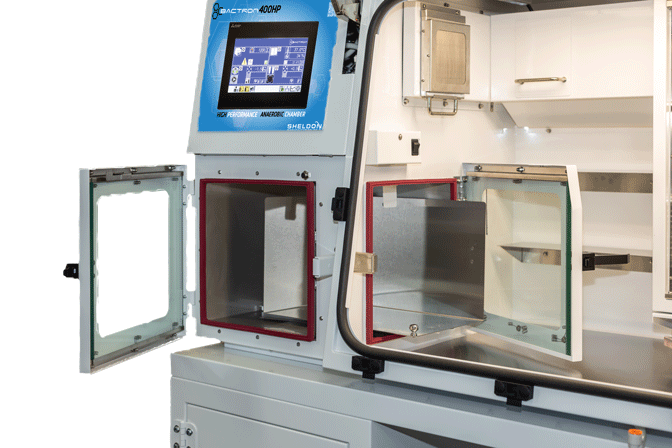

  • User-programmable Airlock for up to 9 purge cycles.
We take customer safety seriously. Unlike many anaerobic chambers that do not carry any safety mark or are self-certified internally (CE marked), the BACTRON family of chambers carries full third-party verified safety compliance certificates. Our anaerobic chambers meet EN61010, UL61010, and Can/CSA61010 standards.





Part ID


Exterior Dimensions (W × D × H)

64 × 32.4 × 32.6
(1625 mm × 635 mm × 823 mm)

Interior Dimensions (W × D × H)

42.5 × 28.9 × 25
(1059.2 mm × 734 mm × 635 mm)


19.8 cu.ft. (453 L)

Airlock Capacity

216 Plates

Airlock Dimensions (W × D × DIAG)

16 × 10 × 11.5
(406.4 mm × 254 mm × 292.1 mm)

Unit Weight

335 lbs (152 kg)

Interior Metal

300 SST

Exterior Metal

300 SST & CR

Operating Temperature Range

Amb +5C - 70C

Temperature Uniformity - Midrange

1.0 °C

Temperature Stability - Midrange

0.2 °C

Display Resolution

0.1 °C

Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 9.0 Amps

BAA40022 Brochure
