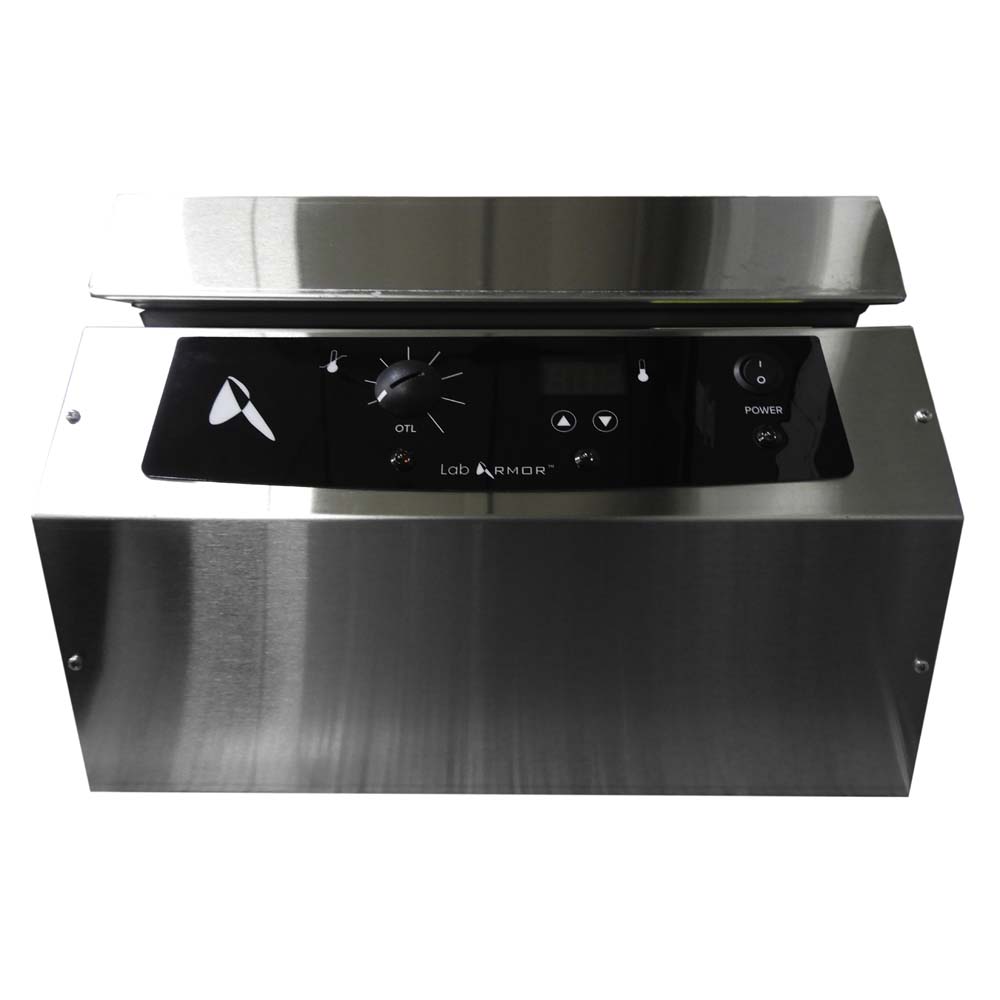

7L Peltier Bead Bath With 5L of Beads Peltier Bead Bath | 7.4 Liter | 5 L Beads

Get a Quotation

Introducing the Lab Armor Peltier Baths! Using TEC-H thermoelectric technology and Lab Armor beads, you can heat or cool your samples and media, saving bench space while processing materials with exceptional temperature uniformity.

Like all Lab Armor beads and bath systems, the new TEC-H bath can eliminate potential contamination found in traditional water baths, with almost maintenance-free operation.

Features:

Removable 7L Aluminum Basket
Temperature Range of 2°C-70°C
Sealing Lid
Acrylic Viewport
Peltier TEC-H Device
Capable of using NEMA 5-15P or EU1-16 Plug
Available in 7L and 14L Configurations
Tested by Intertek to International Electrotechnical Commission 61010 safety standards

Spec sheet for the 7 Liter Bath

Specs Brochures/Manuals

Model

7L Peltier Bead Bath With 5L of Beads

Part ID

75409-707

Exterior Dimensions (W × D × H)

16.1 × 22.1 × 12.1
(408 mm × 562 mm × 308 mm)

Interior Dimensions (W × D × H)

12.5 × 6.1 × 6.0
(318 mm × 154 mm × 152 mm)

Volume

.26 cu.ft. (7.4 L)

Unit Weight

73.7 lbs (33.4 kg)

Interior Metal

Aluminum

Exterior Metal

300 Stainless Steel / Cold Roll

Operating Temperature Range

2C-70C

Temperature Uniformity - Midrange

0.5C @ 37C °C

Power Voltage , Frequency and Current

100-240 VAC, 50/60 Hz, 275 Watts Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

75409-707 110/120V Manual

75409-707 Brochure
