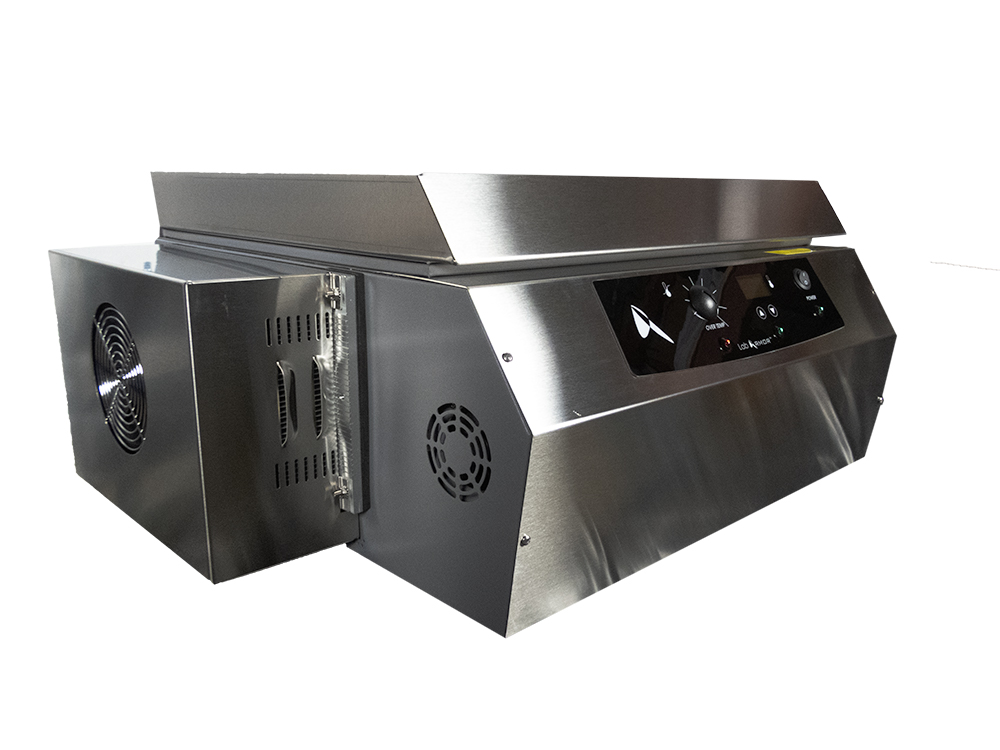

14 L Peltier Bead Bath with 10L of Beads Peltier Bead Bath | 14.8 Liter | 10L Beads

Get a Quotation

Introducing the Lab Armor Peltier Baths! Using TEC-H thermoelectric technology and Lab Armor beads, you can heat or cool your samples and media, saving bench space while processing materials with exceptional temperature uniformity.

Like all Lab Armor beads and bath systems, the new TEC-H bath can eliminate potential contamination found in traditional water baths, with almost maintenance-free operation.

Features:

Two Removable 7L Aluminum Basket
Temperature Range of 2°C-70°C
Sealing Lid
10 Liters of Lab Armor Beads
Acrylic Viewport
Peltier TEC-H Device
Capable of using NEMA 5-15P or EU1-16 Plug
Available in 7L and 14L Configurations
Tested by Intertek to International Electrotechnical Commission 61010 safety standards

Spec sheet for the 14 Liter Bath

Specs Brochures/Manuals

Model

14 L Peltier Bead Bath with 10L of Beads

Part ID

75409-714

Exterior Dimensions (W × D × H)

30.4 × 24.2 × 12.2
(772 mm × 615 mm × 310 mm)

Interior Dimensions (W × D × H)

12.5 × 6.1 × 6.0
(318 mm × 154 mm × 152 mm)

Volume

.52 cu.ft. (14.8 L)

Unit Weight

135.1 lbs (61.3 kg)

Interior Metal

Aluminum

Exterior Metal

300 Stainless Steel / Cold Roll

Operating Temperature Range

2C-70C

Temperature Uniformity - Midrange

0.5C @ 37C °C

Power Voltage , Frequency and Current

100-240 VAC, 50/60 Hz, 550 Watts Amps

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

75409-714 110/120V Manual

75409-714 Brochure
