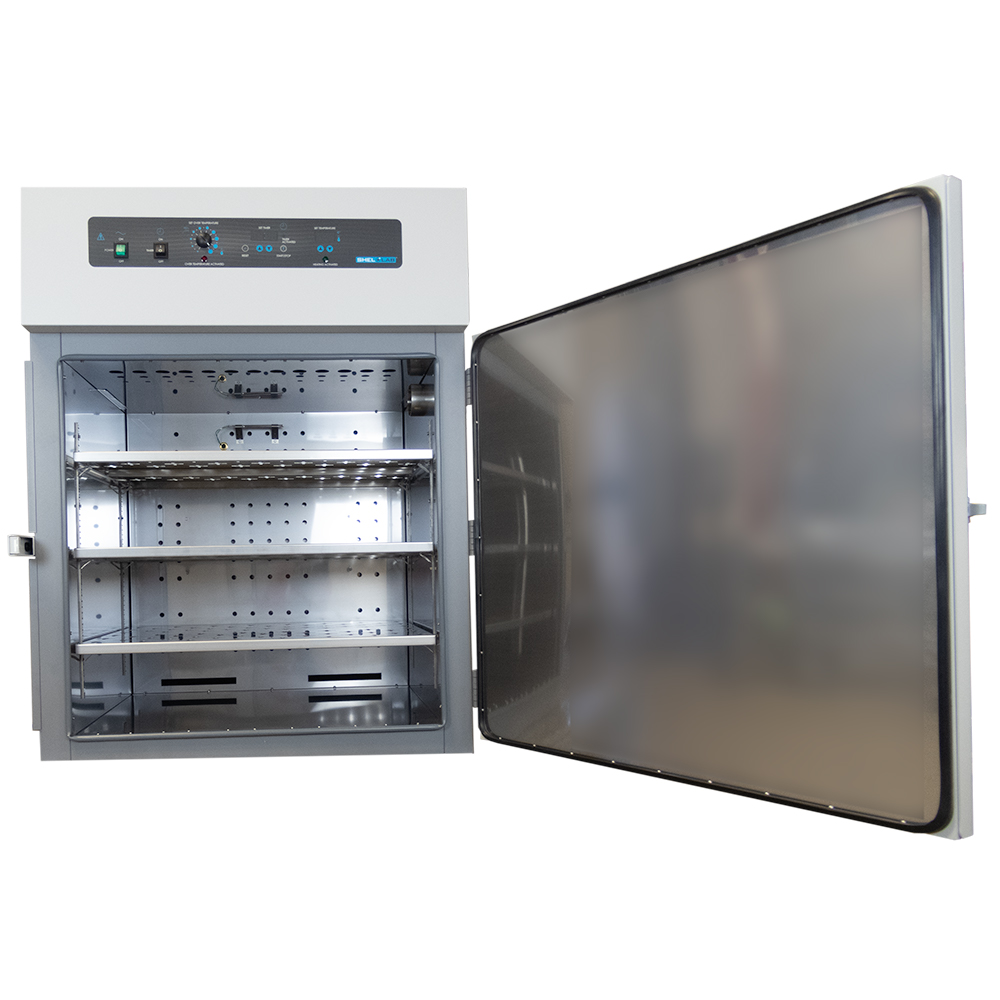

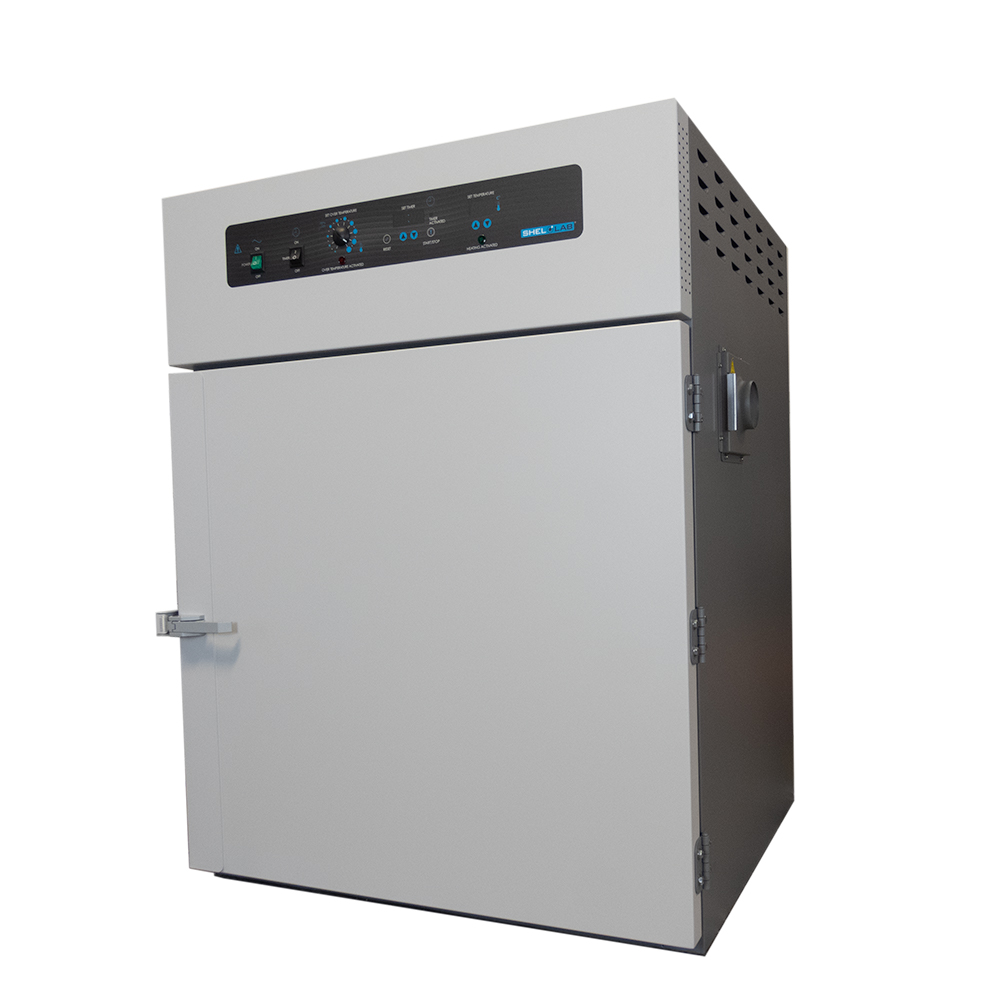

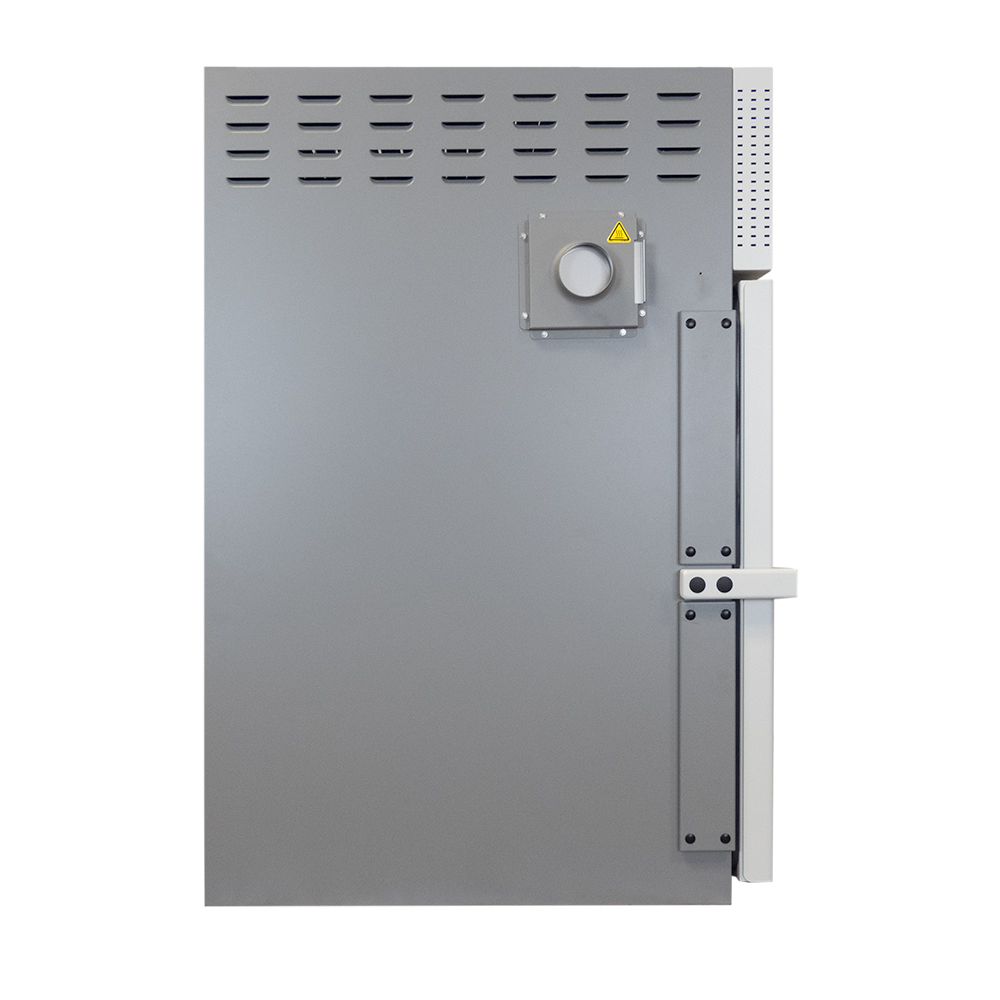

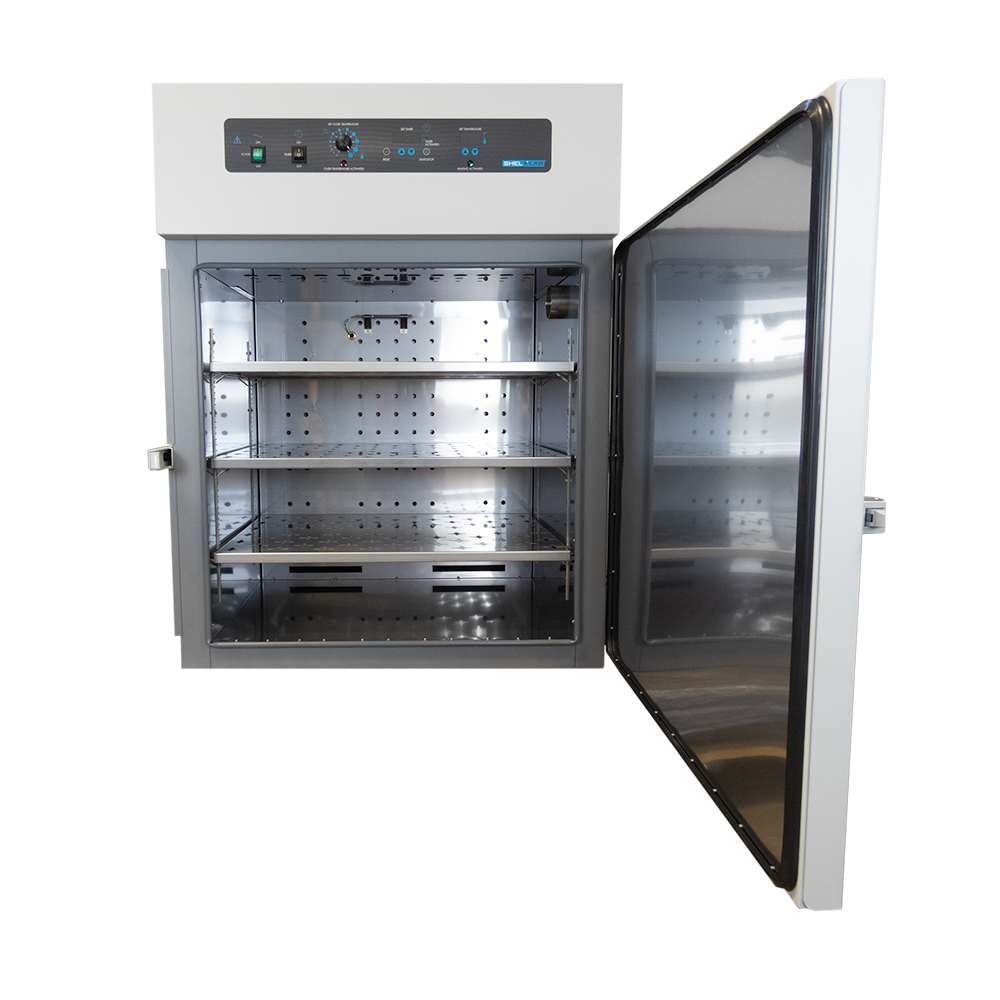

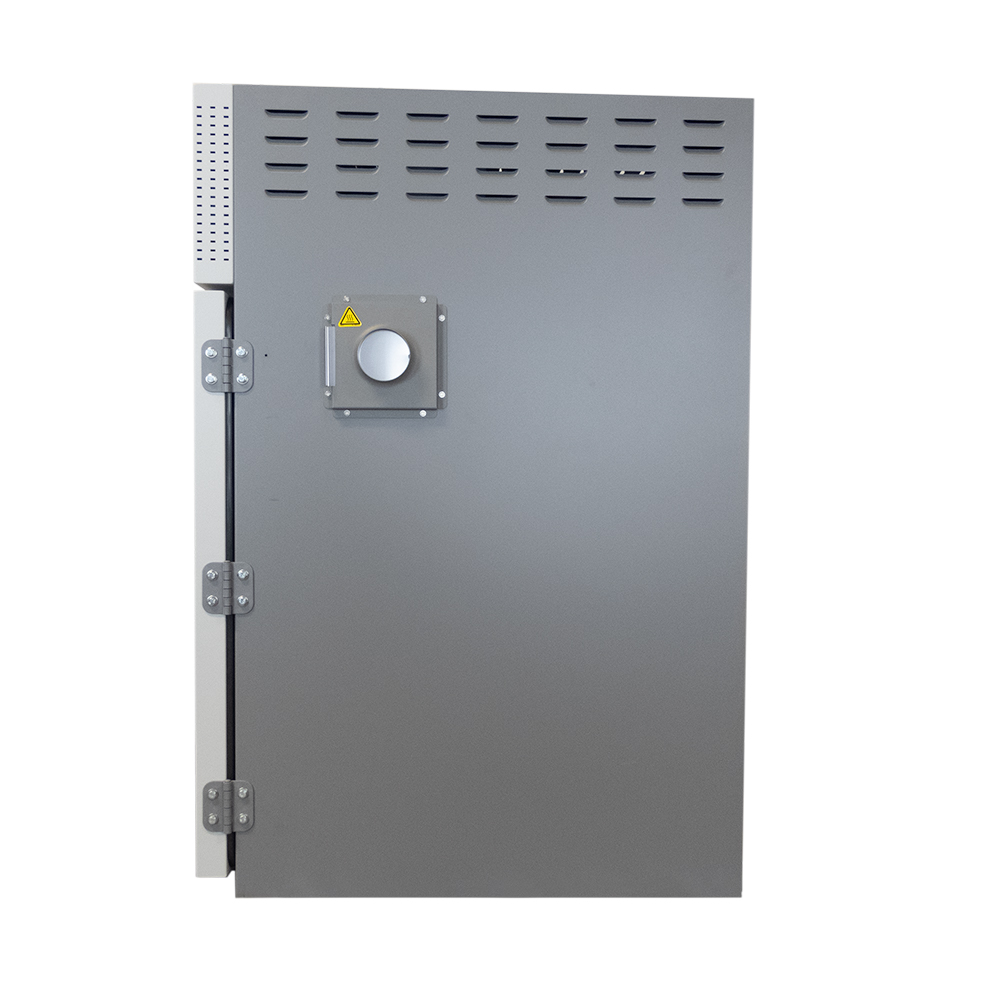

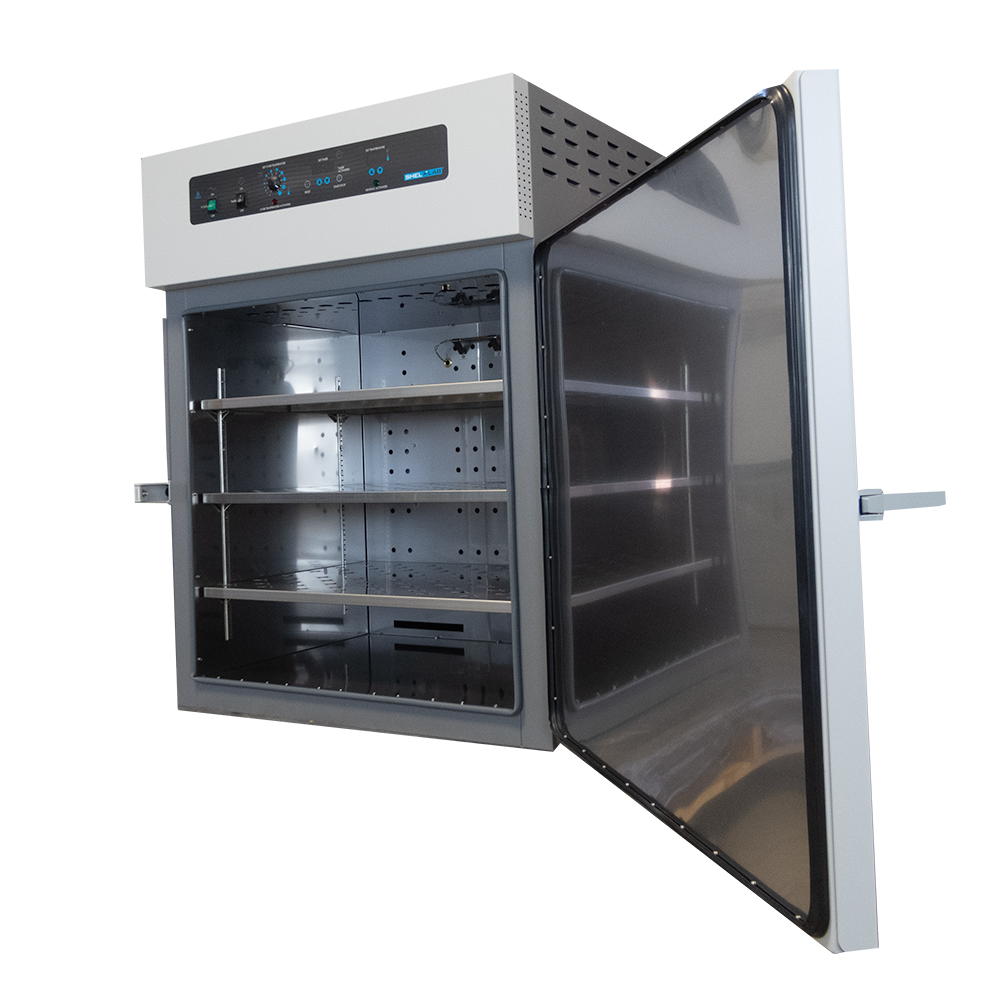

SMO14-2 NEW - Forced Air Oven, 14.6 Cubic Feet, 230V

Get a Quotation
The SHEL LAB SMO14-2 features 14 cubic feet of economical oven space. The independent overtemperature safety feature is user adjustable and provides added safety. The forced, blower-assisted airflow design offers excellent temperature uniformity and fast recovery. A turbo blower and heavy-duty motor combine to direct air over the shelves and samples for even, constant drying, curing and baking.


There are several models to choose from in the forced air product line, with varying sizes and control features. The large capacity units are perfect for high volume sample and drying applications, including production processes. These units are especially ideal for glassware drying.



SHEL LAB ovens are available in a broad array of sizes, styles, and technology. Features:

  • Three-inch Adjustable Exhaust Port
  • Stainless Steel Shelves
  • Independent Overtemperature Safety
  • High-Temperature Silicone Door Seal
  • Added docking collars to intake and exhaust ports to allow ducting to be attached for venting exhaust out of the workspace
  • Shelf standards moved to the sides of the unit for easier shelf installation
  • No Exposed Heating
  • Wrap Around Insulation
  • Durable Powder Coat Paint Exterior Finish
  • Digital Timer
  • 24 Month Limited Warranty
Ask us about our Extended Warranties*!
*US Domestic Only

Model

SMO14-2

Part ID

SLF1422-H


Exterior Dimensions (W × D × H)

39.1 × 34 × 48
(993 mm × 864 mm × 1219 mm)

Interior Dimensions (W × D × H)

30.8 × 24.8 × 31
(782 mm × 630 mm × 788 mm)

Volume

14.6 cu.ft. (413 L)

Shelf Dimensions (W × D)

30.1 × 24 (765 mm × 610 mm)

Unit Weight

280.0 lbs (127.3 kg)


Interior Metal

430 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +15C - 260C

Temperature Uniformity - Midrange

3.0 °C

Temperature Stability - Midrange

0.4 °C


Controller Type

Digital

Display Resolution

1 °C


Power Voltage , Frequency and Current

230 VAC, 50/60 Hz, 12.0 Amps


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLF1422-H 220/240V Manual

SLF1422-H Brochure
