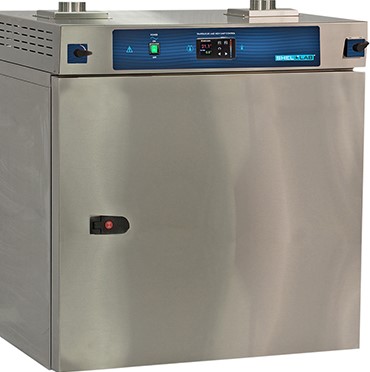

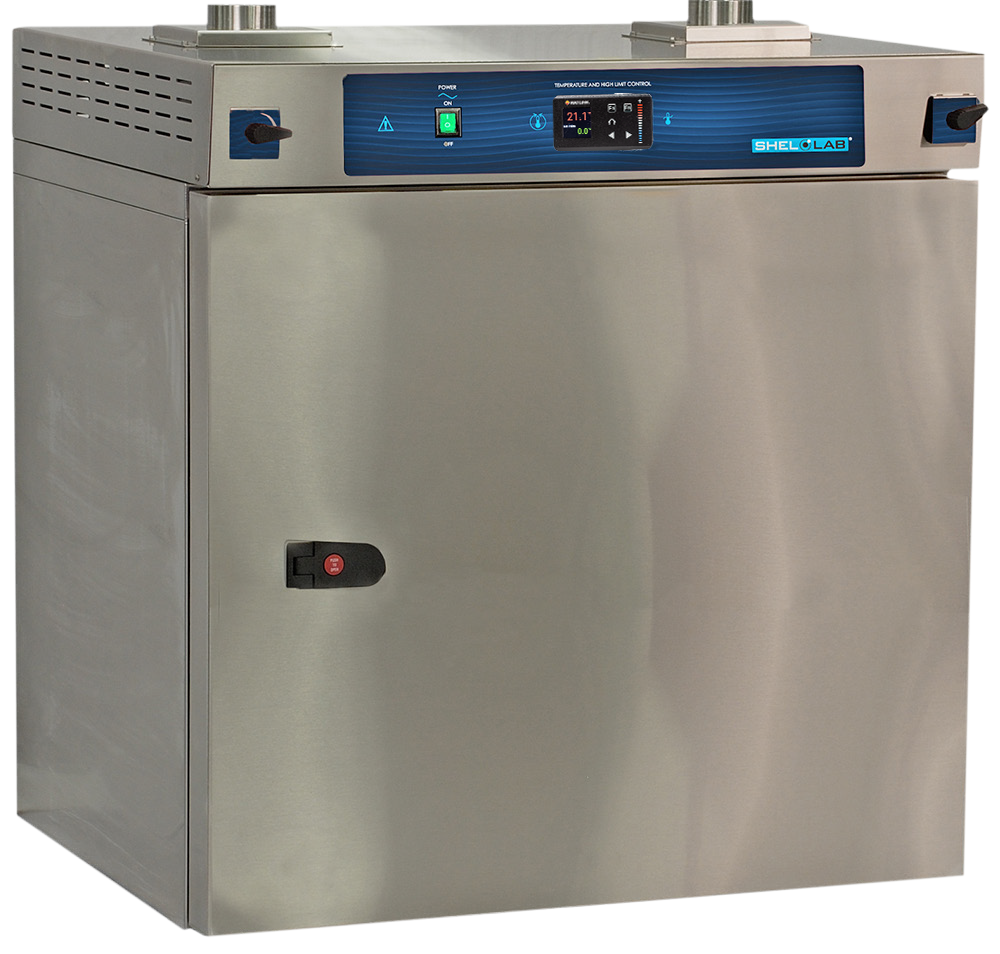

SMO5CR-2 Cleanroom Forced Air Oven | 3.9 Cu. Ft. 111 L | 230V

Get a Quotation

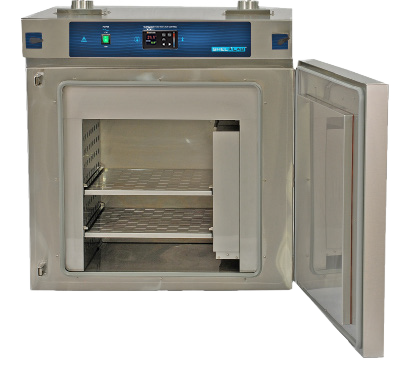

The SHEL LAB SMO5CR-2 cleanroom oven incorporates all the special features needed for high-temperature cleanroom work: stainless-steel interior, adjustable perforated stainless-steel shelves, and rapid heat recovery.

The Watlow controller is capable of a 40-step ramp and soak profile or 4 files with 10 steps per file. SHEL LAB SMO5CR-2 cleanroom ovens are made with high-temperature, wrap-around insulation, and a high-temperature silicone door gasket.

The SMO5CR-2’s adjustable air intake and exhaust ducts are easily removed for cleaning. Chamber air is continually passed through the Class E11 efficiency particle filter in SMO5CR-2’s horizontal airflow regimen; this contrasts with other oven designs that merely filter the incoming air once. A nitrogen inlet purge port is standard to reduce external air ingress and the risk of contamination.

Features of the SMO5CR-2 include:
  • Horizontal Airflow
  • Encapsulated Insulation
  • Nitrogen Purging
  • Brushless Circulation Blower Motor
  • Watlow Controller
  • Class E11 Efficiency Particle Filter
  • 300 Series Stainless-Steel Exterior
  • Fully Welded Stainless-Steel Interior
  • Built-in Overtemperature Protection
  • 24 Month Limited Warranty

Model

SMO5CR-2

Part ID

SLFCR523-H


Exterior Dimensions (W × D × H)

35 × 30 × 37.6
(889 mm × 747 mm × 955 mm)

Interior Dimensions (W × D × H)

17 × 20 × 20
(431 mm × 508 mm × 508 mm)

Volume

3.9 cu.ft. (111 L)

Shelf Dimensions (W × D)

16.6 × 20.1 (421 mm × 510 mm)

Unit Weight

325 lbs (147 kg)


Interior Metal

300 SST

Exterior Metal

300 SST


Operating Temperature Range

Amb +20C - 270C

Temperature Uniformity - Midrange

2.5 °C

Temperature Stability - Midrange

0.3 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

220-240 VAC, 50/60 Hz, 12.0 Amps


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLFCR523-H 220/240V Manual

SLFCR523-H Brochure
