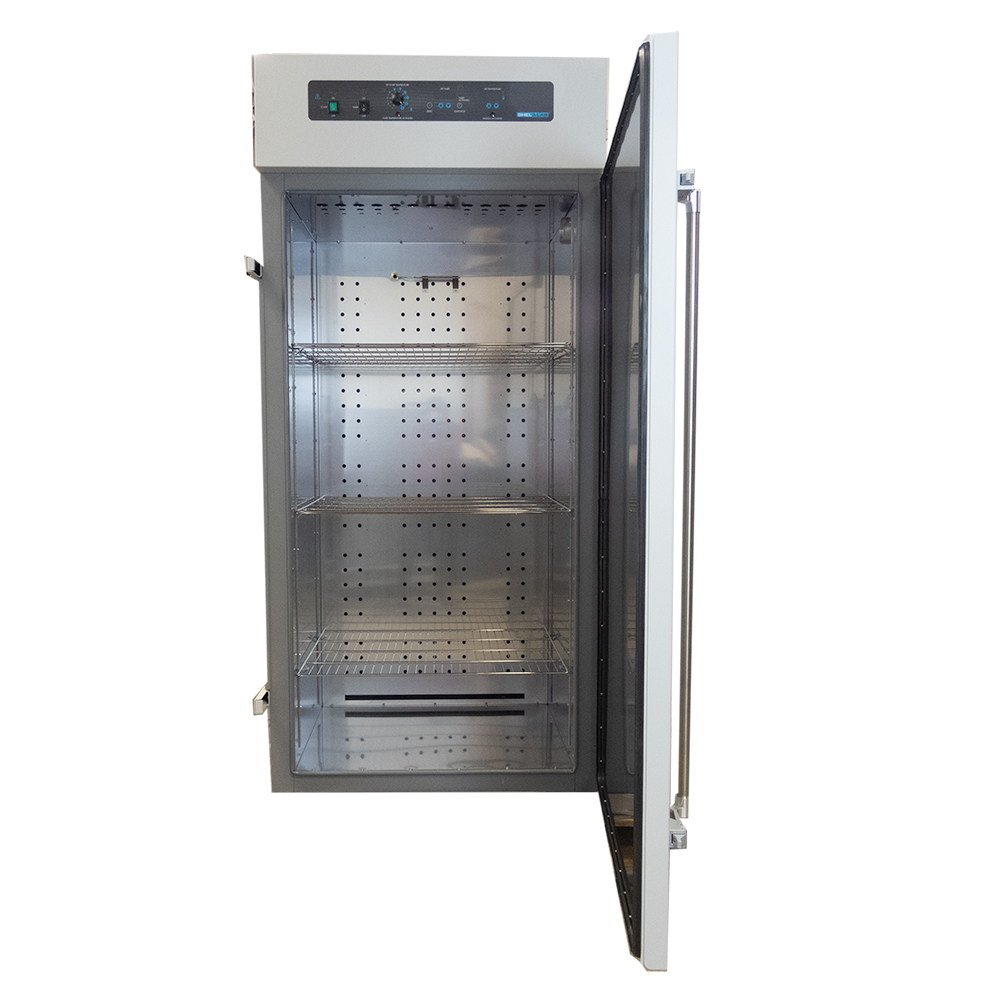

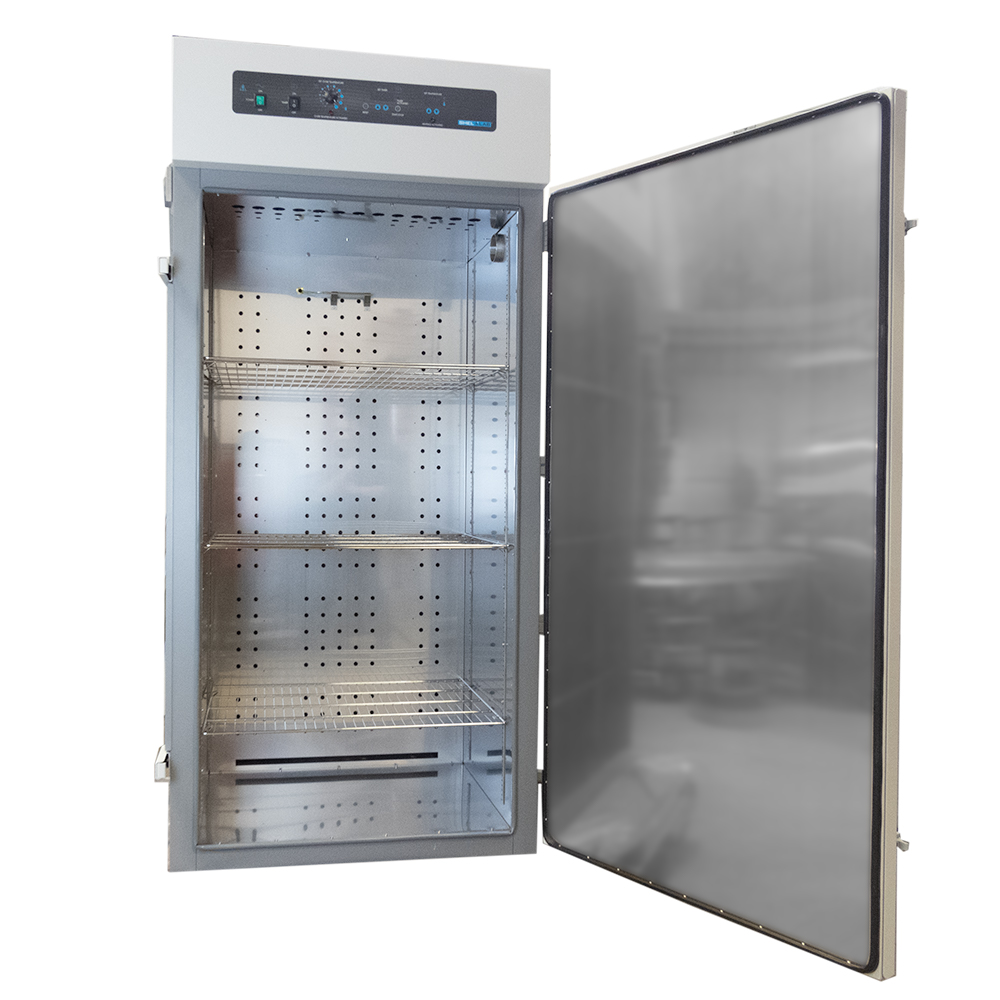

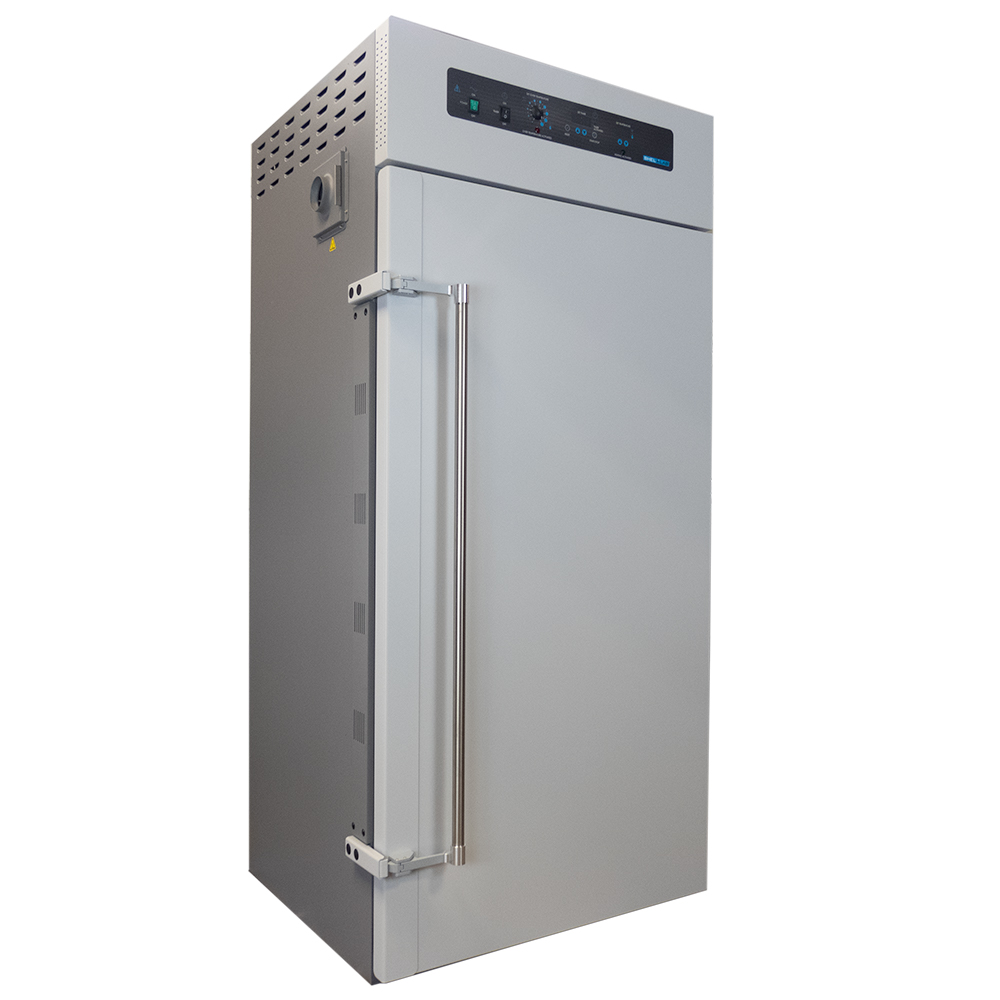

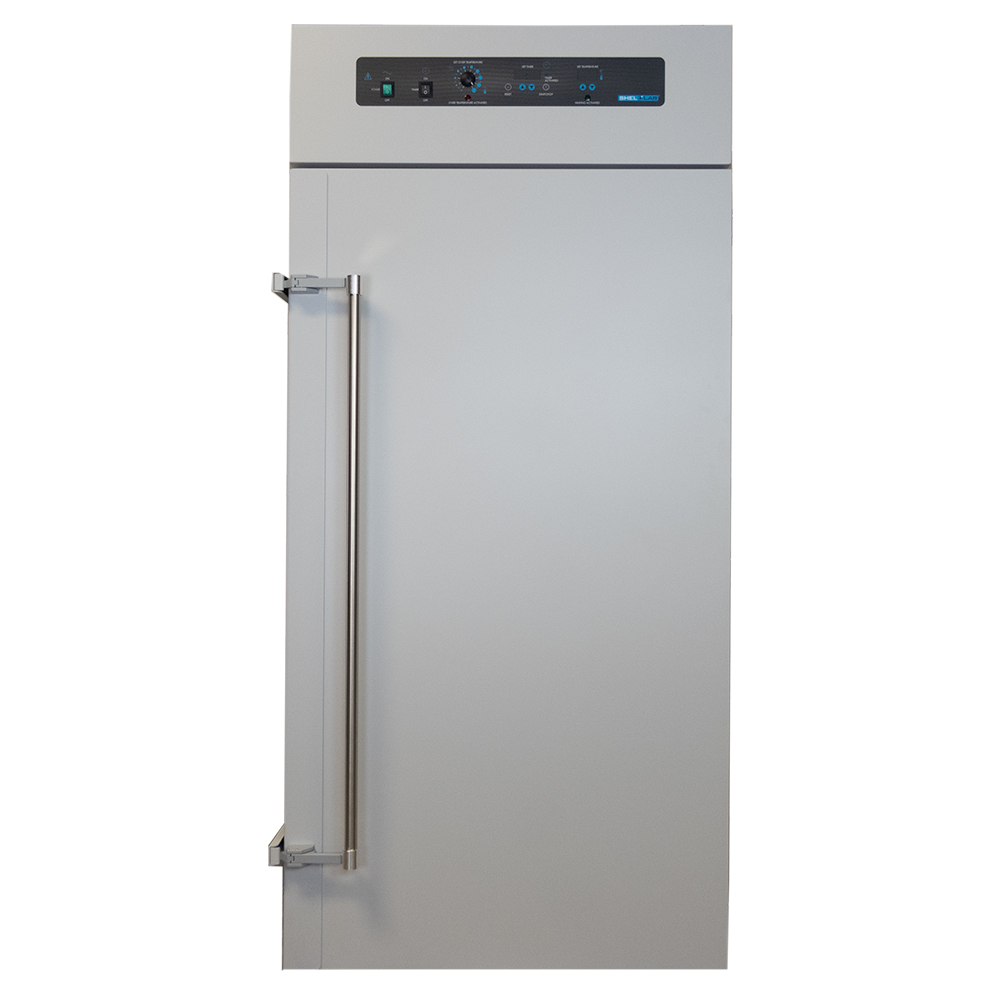

SMO28G-2 NEW - Forced Air Oven, 27.6 Cubic Feet, 230V, Cerakote

Get a Quotation
The SMO28G-2 is sold only to certified Cerakote ™ applicators. It is purpose built for curing Cerakote ™ ceramic coatings. The turbo blower assisted forced airflow design coupled with a heavy duty blower motor offers excellent temperature uniformity



The independent overtemperature safety feature is user adjustable and provides added safety. The turbo blower-assisted forced airflow design coupled with a heavy-duty blower motor offers excellent temperature uniformity and fast recovery times. Airflow is directed evenly across all shelves and samples to ensure consistent drying, curing and baking results.




Features of the SMO28G-2:



  • Three inch Adjustable Exhaust Port
  • Stainless Steel Shelves
  • Independent Overtemperature Safety
  • High Temperature Silicone Door Seal
  • No Exposed Heating Elements
  • Added docking collars to intake and exhaust ports to allow ducting to be attached for venting exhaust out of the workspace
  • Shelf standards moved to the sides of the unit for easier shelf installation
  • Wrap Around Insulation
  • Durable Powder Coat Paint Exterior Finish
  • Digital Timer
  • 24 Month Limited Warranty



Model

SMO28G-2

Part ID

SLFG2822-H


Exterior Dimensions (W × D × H)

39.1 × 35 × 78.3
(993 mm × 889 mm × 1989 mm)

Interior Dimensions (W × D × H)

30.8 × 25 × 61
(782 mm × 635 mm × 1575 mm)

Volume

27.6 cu.ft. (781 L)

Shelf Dimensions (W × D)

30.1 × 24 (765 mm × 610 mm)

Unit Weight

390.0 lbs (177.3 kg)


Interior Metal

430 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +15C - 260C

Temperature Uniformity - Midrange

3.0 °C

Temperature Stability - Midrange

0.2 °C


Controller Type

Digital

Display Resolution

1 °C


Power Voltage , Frequency and Current

230 VAC, 50/60 Hz, 20.0 Amps

Max HVAC Load

9700 BTUs/hr


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLFG2822-H 220/240V Manual
