SMO5 With Sliding Shelf Option

Get a Quotation
SHEL LAB’S SMO5 oven, utilizing dry heating technologies to meet the NIH protocol, decontaminates while preserving the filter integrity for reuse. Our SMO5 with sliding shelf option is a sustainable and cost-effective solution for your decontamination needs following NIH protocol.


Features of this oven include:

  • Embedded Microprocessor Control with Countdown Timer

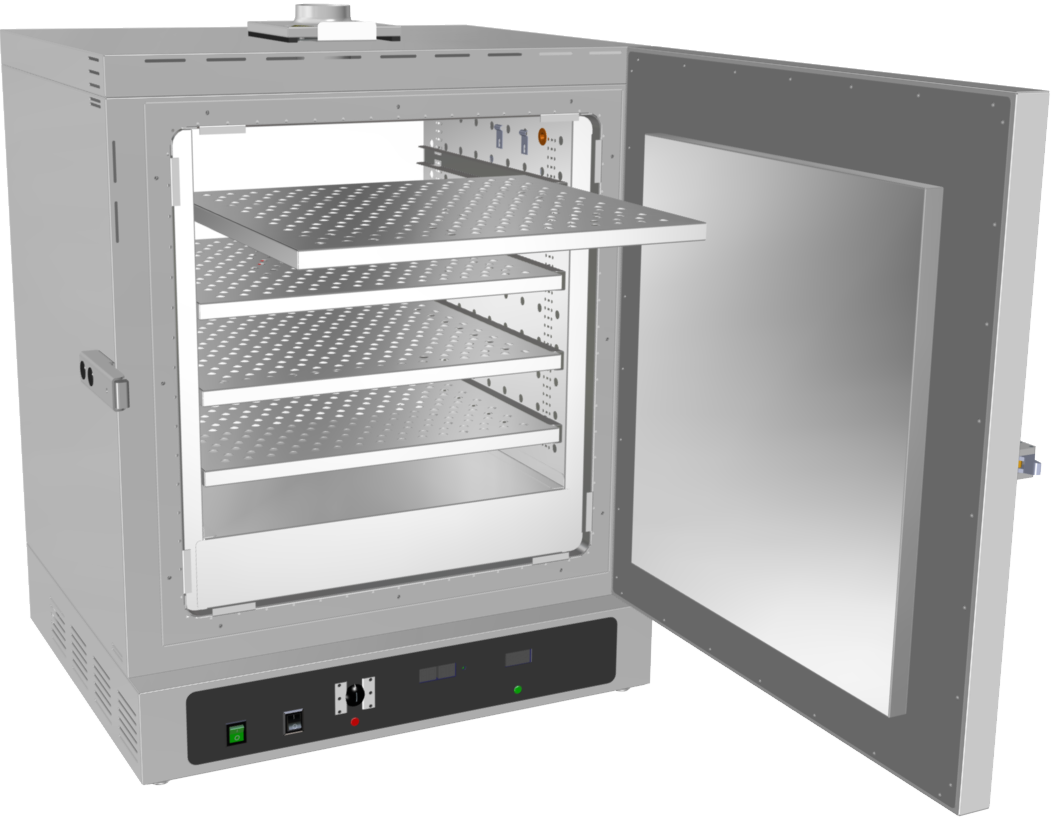

  • 4 Slider shelves for easy mask removal

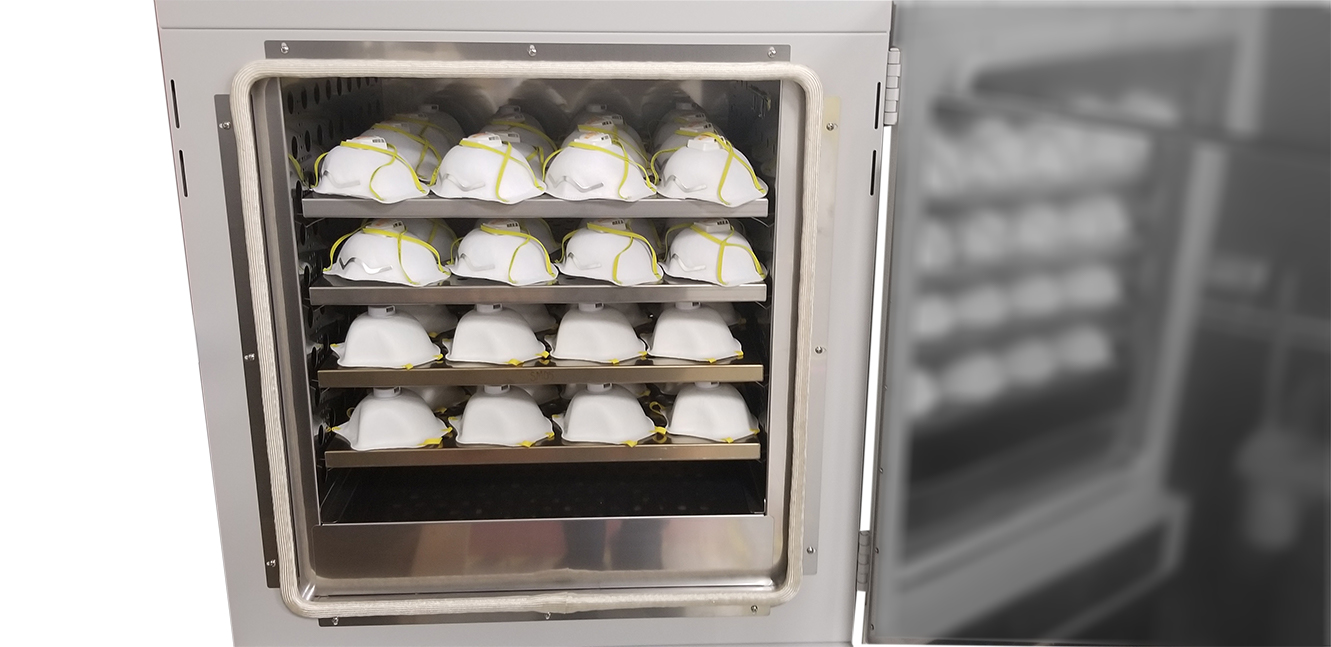

  • Decontaminates up to 64* N95 Respirators per cycle
  • Rapid pre-heating time to 70°C (158°F)
  • Uses common 120V or 220V wall outlet (depending on unit model)
  • Horizontal Forced Airflow
  • 1.75in (45 mm) Access Port
  • UL/CSA Approved
  • CE Approval
  • DIN 12880 Compliant
  • 24 Month Limited Warranty
*Depending on the mask brand

Model

SMO5

Part ID

SMO5-M


Exterior Dimensions (W × D × H)

31.4 × 28.1 × 38.8
(798 mm × 714 mm × 986 mm)

Interior Dimensions (W × D × H)

21 × 19.4 × 20.7
(533 mm × 494 mm × 527 mm)

Volume

4.9 cu.ft. (138.0 L)

Shelf Dimensions (W × D)

20.6 × 18.8 (523 mm × 478 mm)

Unit Weight

208.0 lbs (94.3 kg)


Interior Metal

430 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +20C - 306C

Temperature Uniformity - Midrange

1.8 °C

Temperature Stability - Midrange

0.3 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 14.0 Amps


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SMO5-M Brochure
