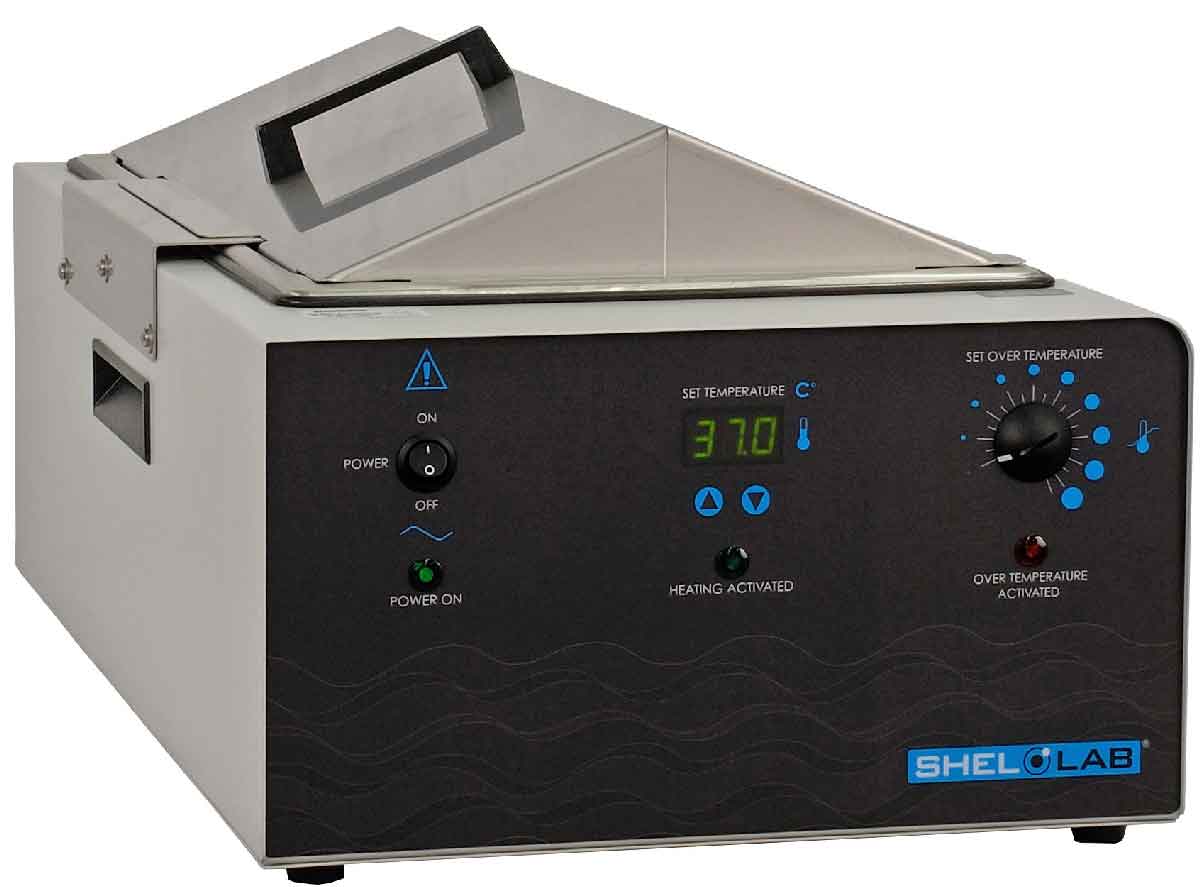

SWB23 WATER BATH, 23L, 115V

Get a Quotation
SHEL LAB high-performance water baths are accurate, easy to use, safe and durable. The digital set / digital read P.I.D. temperature controller maximizes rapid heat-up without temperature overshoot. A microprocessor achieves precise temperature control regardless of how the unit is loaded. Calibration is performed directly from the front panel.

This durable and dependable water bath comes with a variety of safety and convenience features. It has a unique lid design that allows condensation to drain back into the tank without spilling onto the work area. We have also incorporated a gasket around the water bath tank to prevent water from dripping onto the controls. A warm air jacketed design radiates heat to the sides and bottom of the tank, eliminating hot spots. The unit has a non-contact, recessed heating element that will prevent burnouts if the water level is too low.

The water bath tank is constructed of stainless steel and does not have seams that could leak. The radius corners of the tank make cleaning easy. The unit’s housings have a high quality textured powder coat finish. This electrostatically applied finish not only eliminates rust and chipping but is resistant to nicks, scratches and corrosives.

SHEL LAB Digital Water Baths are durable, dependable and are available in four sizes (2, 7, 15, and 23 L), with a variety of safety and convenience features.

These features include:

  • Easy-to-Clean Stainless Steel Tank
  • Air Jacket Heating Eliminates Hot Spots
  • Recessed Heating Element Prevents Burnout
  • Thermometer Clip
  • 24 Month Limited Warranty *excludes tank

Model

SWB23

Part ID

SWB23


Exterior Dimensions (W × D × H)

14.8 × 25.0 × 12.0
(376 mm × 635 mm × 305 mm)

Interior Dimensions (W × D × H)

11.5 × 19.5 × 6
(292 mm × 495 mm × 152 mm)

Volume

0.81 cu.ft. (23 L)

Unit Weight

25 lbs (11.3 kg)


Interior Metal

300 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +5C - 80C

Temperature Uniformity - Midrange

0.2 °C

Temperature Stability - Midrange

0.1 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 5.0 Amps

Max HVAC Load

1883 BTUs/hr


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SWB23 110/120V Manual

SWB23 220/240V Manual

SWB23 Brochure
