SWBC22 WATER BATH CIRCU 22L 115V

Get a Quotation

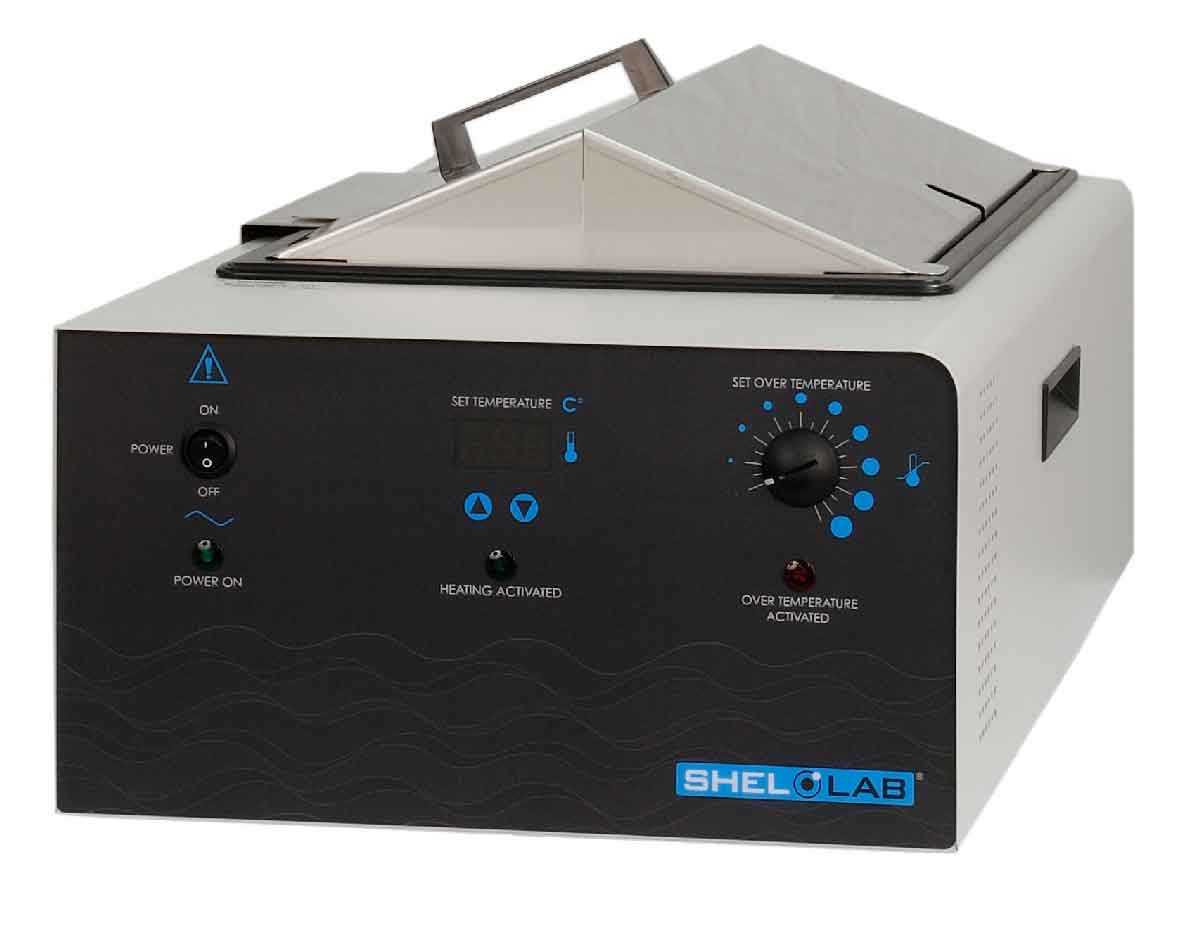

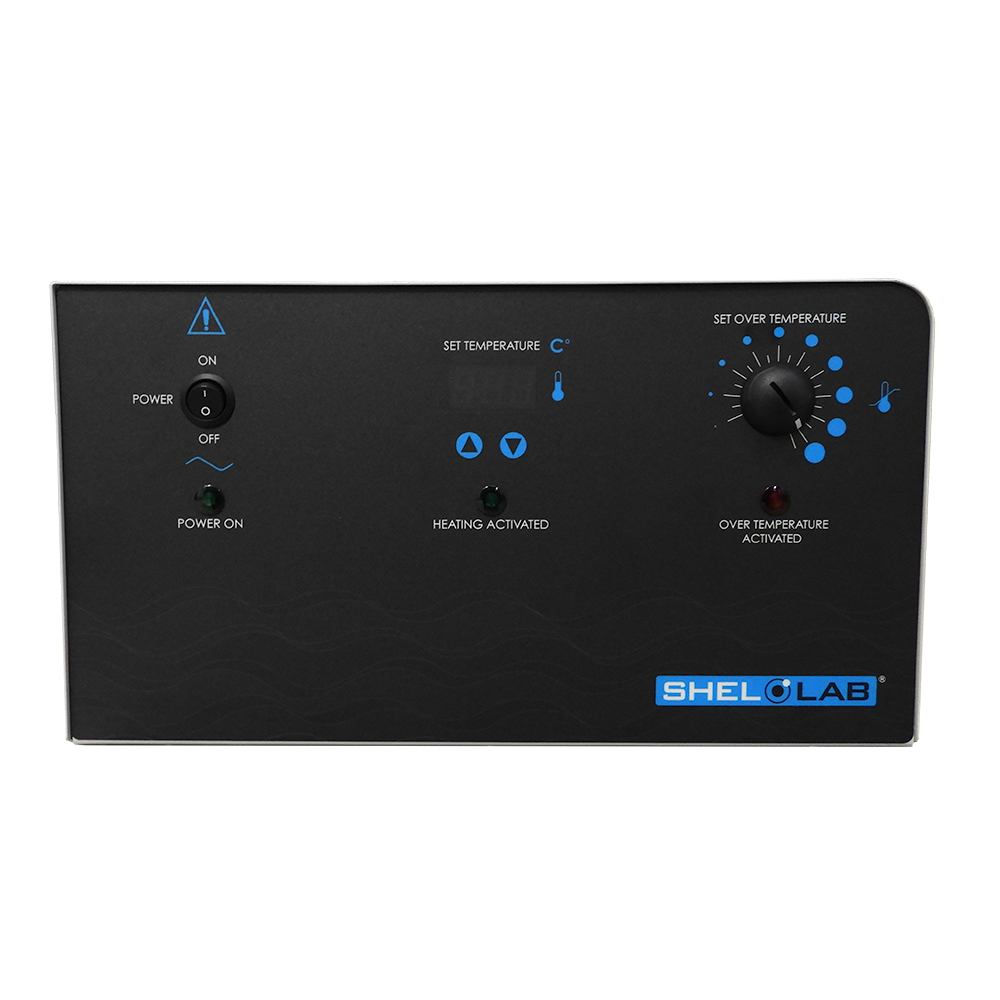

Model SWBC22 Digital Circulating Water Bath, Microprocessor Control, Overtemperature Protection

SHEL LAB Circulating Water Baths are an excellent choice for research and quality control applications. They are highly accurate, easy-to-use, rugged and safe.

Features include:

  • Microprocessor Control
  • Easy-To-Clean Polymer-Coated Tanks
  • Air Jacket Heating Eliminates Hot Spots
  • Recessed Heating Element Prevents Burnout
  • Thermometer Clip
  • 24 Month Limited Warranty *excludes tank

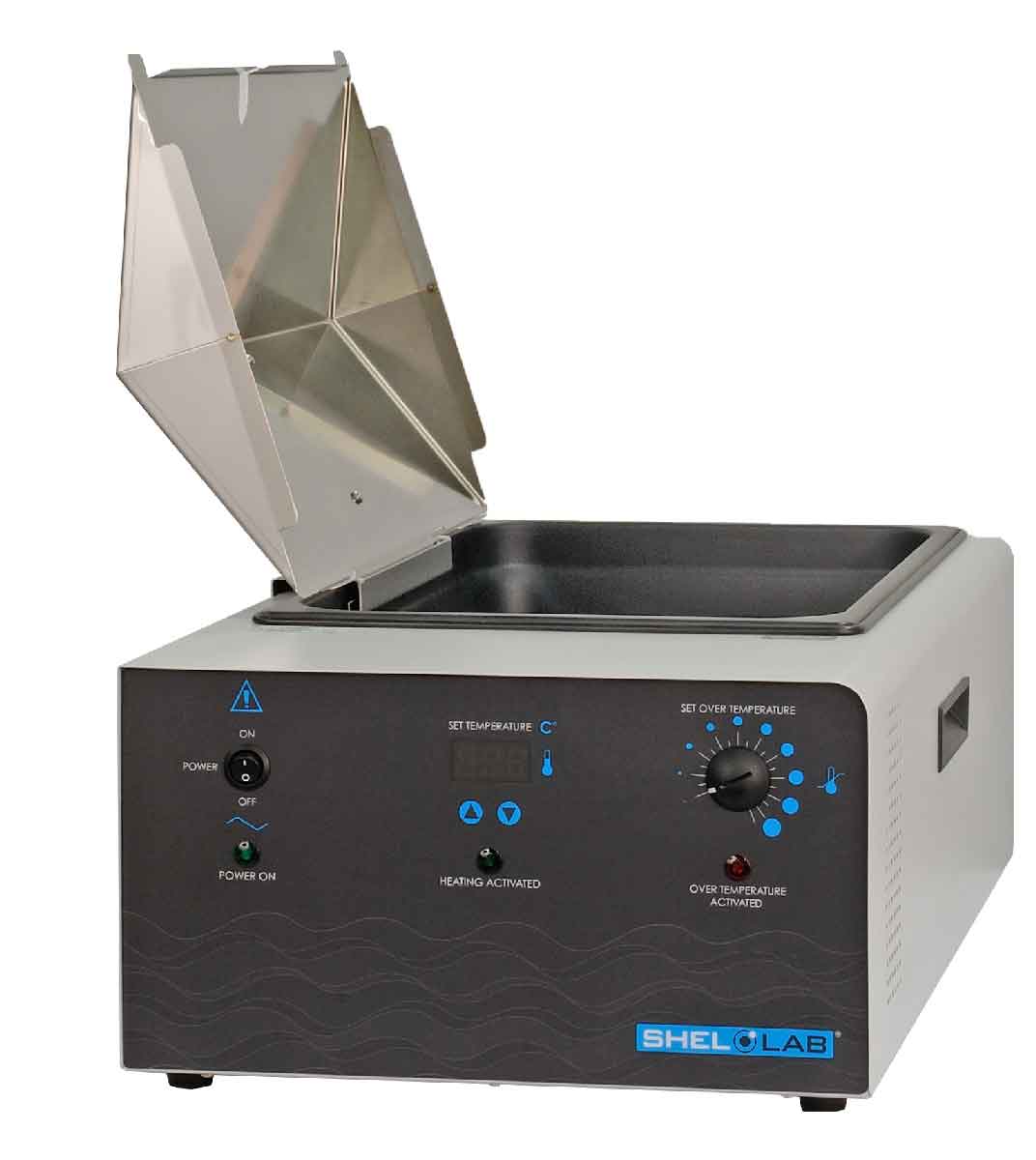

 The stainless steel cover is included with the purchase of this model. The use of covers is suggested since they allow maximum temperature range and help maintain better temperature uniformity

Model

SWBC22

Part ID

SWBC22


Exterior Dimensions (W × D × H)

14.9 × 28.9 × 12.0
(378 mm × 734 mm × 305 mm)

Interior Dimensions (W × D × H)

11.5 × 19.5 × 6
(292 mm × 495 mm × 152 mm)

Volume

0.78 cu.ft. (22 L)

Unit Weight

30 lbs (13.6 kg)


Interior Metal

300 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +5C - 80C

Temperature Uniformity - Midrange

0.2 °C

Temperature Stability - Midrange

0.1 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 5.0 Amps

Max HVAC Load

1965 BTUs/hr


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SWBC22 110/120V Manual

SWBC22 220/240V Manual

SWBC22 Brochure
