SMI2 Microbiological Incubator w/Touch Screen | 2 cu.ft. 56.3 L

Get a Quotation

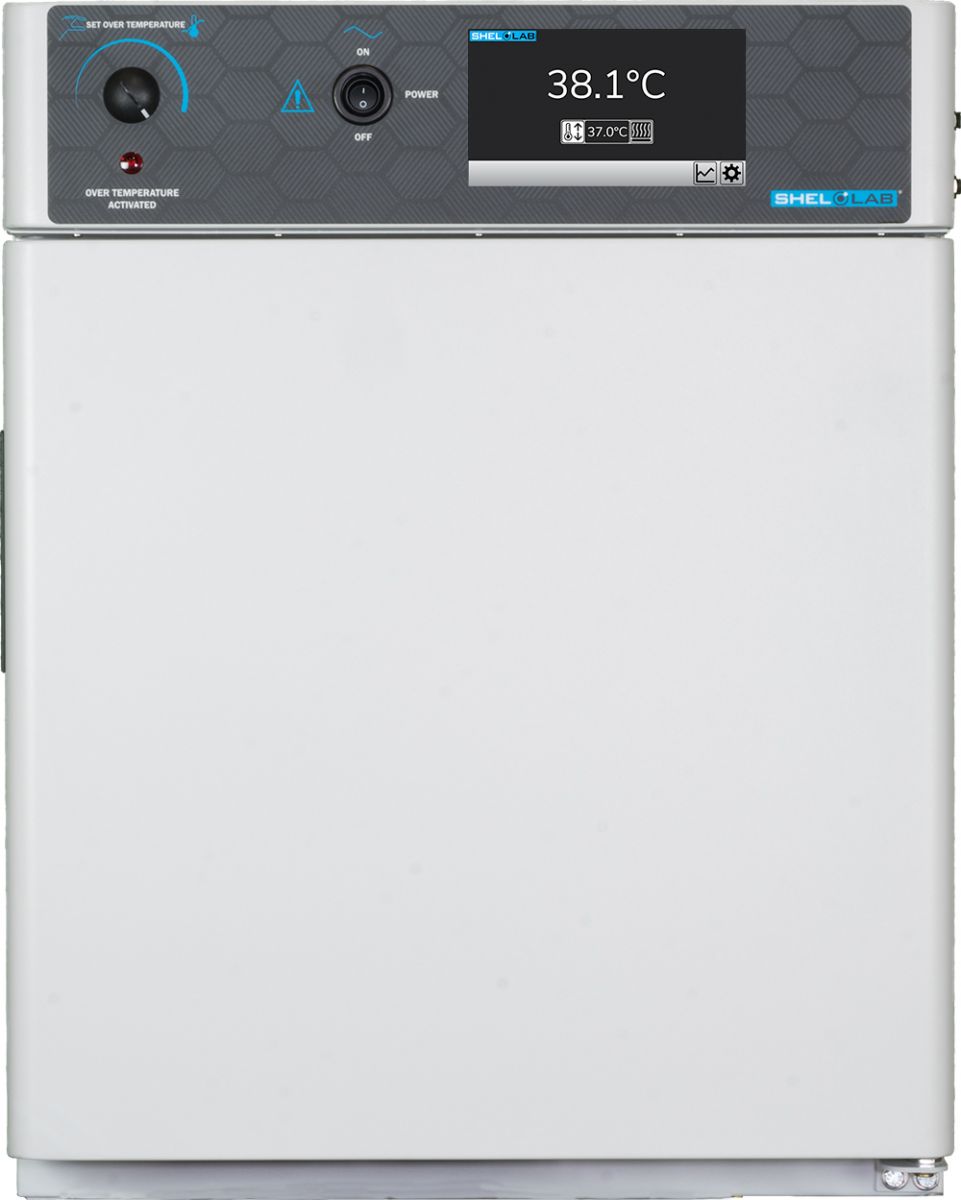

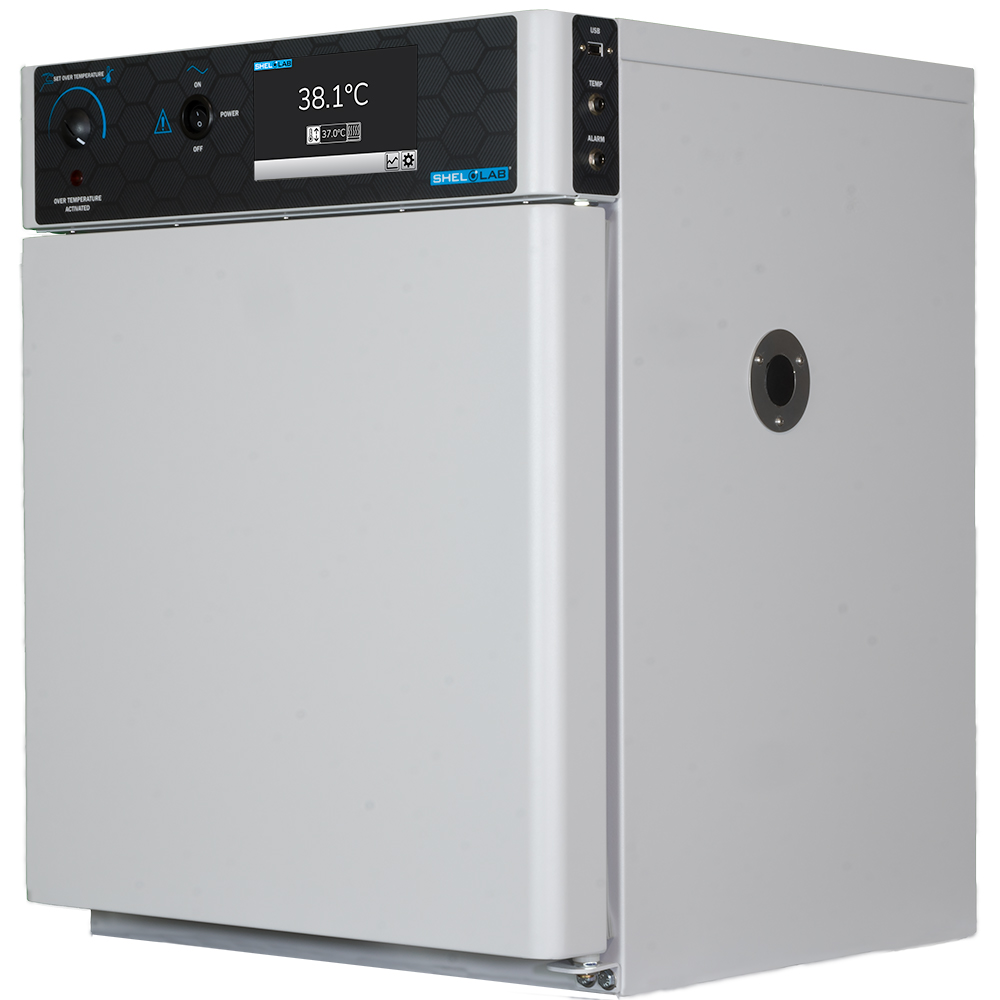

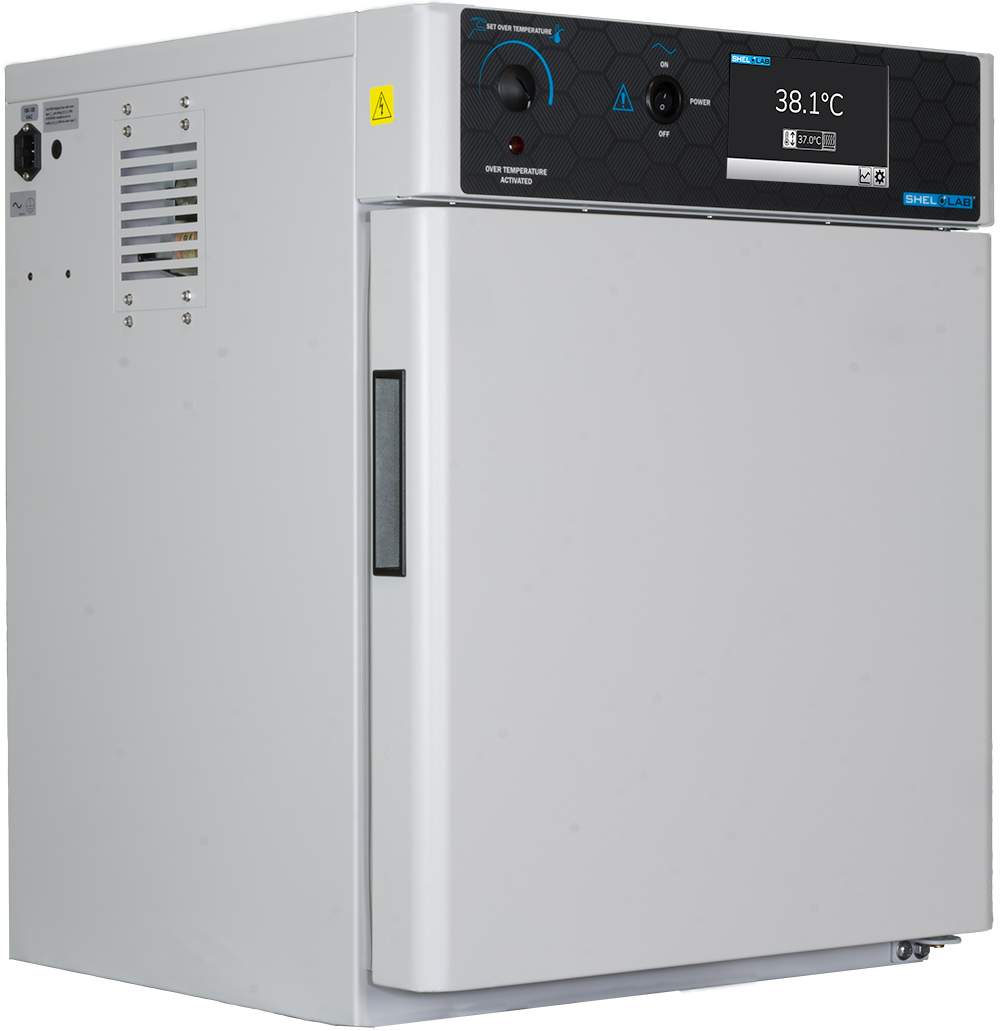

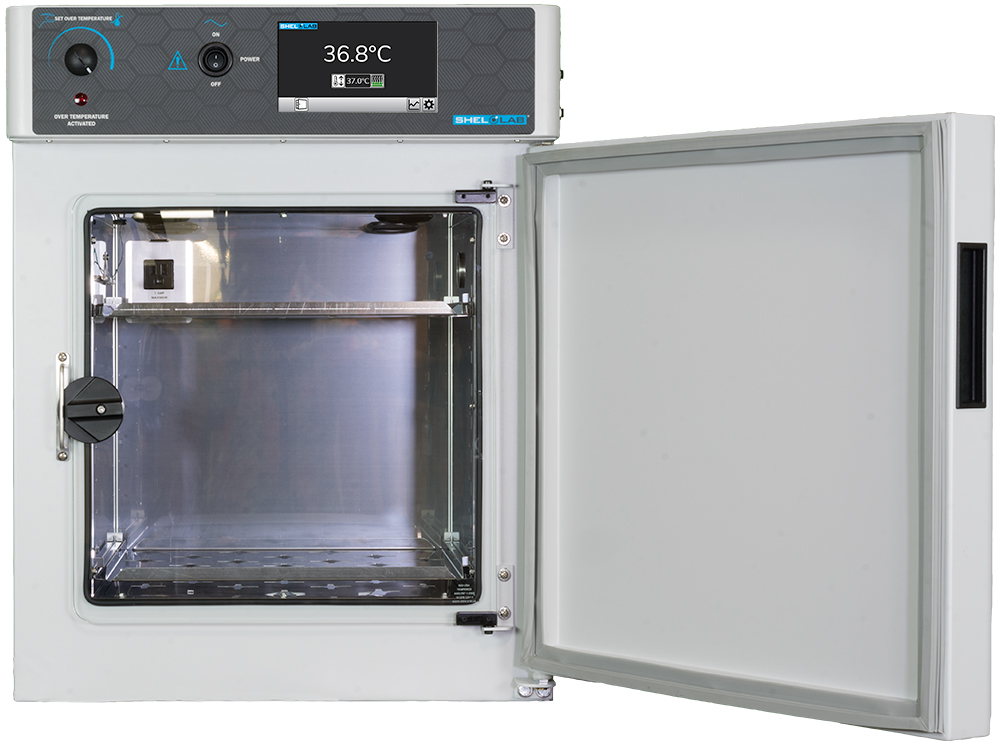

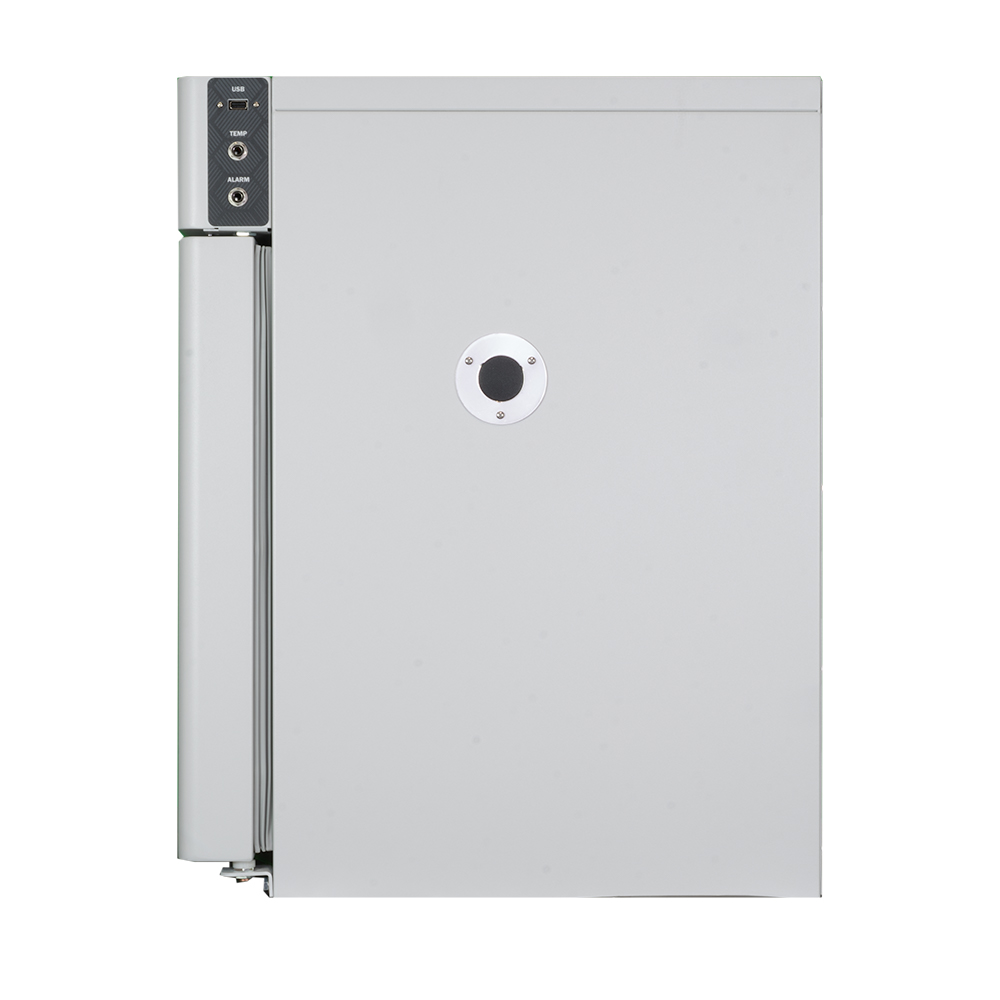

SMI2 SHEL LAB Microbiological Incubator is 2 cubic feet (56.3 L). This benchtop unit is perfect for general cell culture and constant temperature applications.

The SHEL LAB Microbiological Incubator Series has been redesigned for optimum performance. Ranging in size from 2 to 11.7 cubic feet (57 to 331 liters), the SMI Series will fit any workspace.

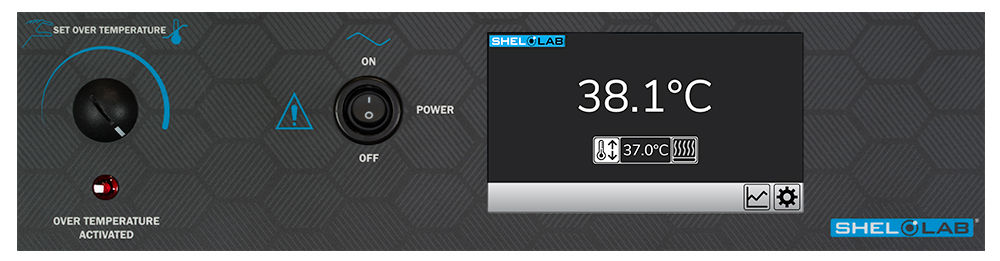

NEW – Touch Screen

Significantly updating SHEL LAB’s General Purpose Incubators, the new 7 inch display provides advanced control functions. With on-screen graphing and real time data, the new SMI controller provides the highest levels of sample security and traceability.

More features of the new SMI incubators include:

  • 7” color display module
  • Capacitive touchscreen usable with laboratory gloves
  • Real-time clock for logging events
  • Door alarm
  • On-screen data graphing
  • 4-20mA output for chart recorder or central facility recording

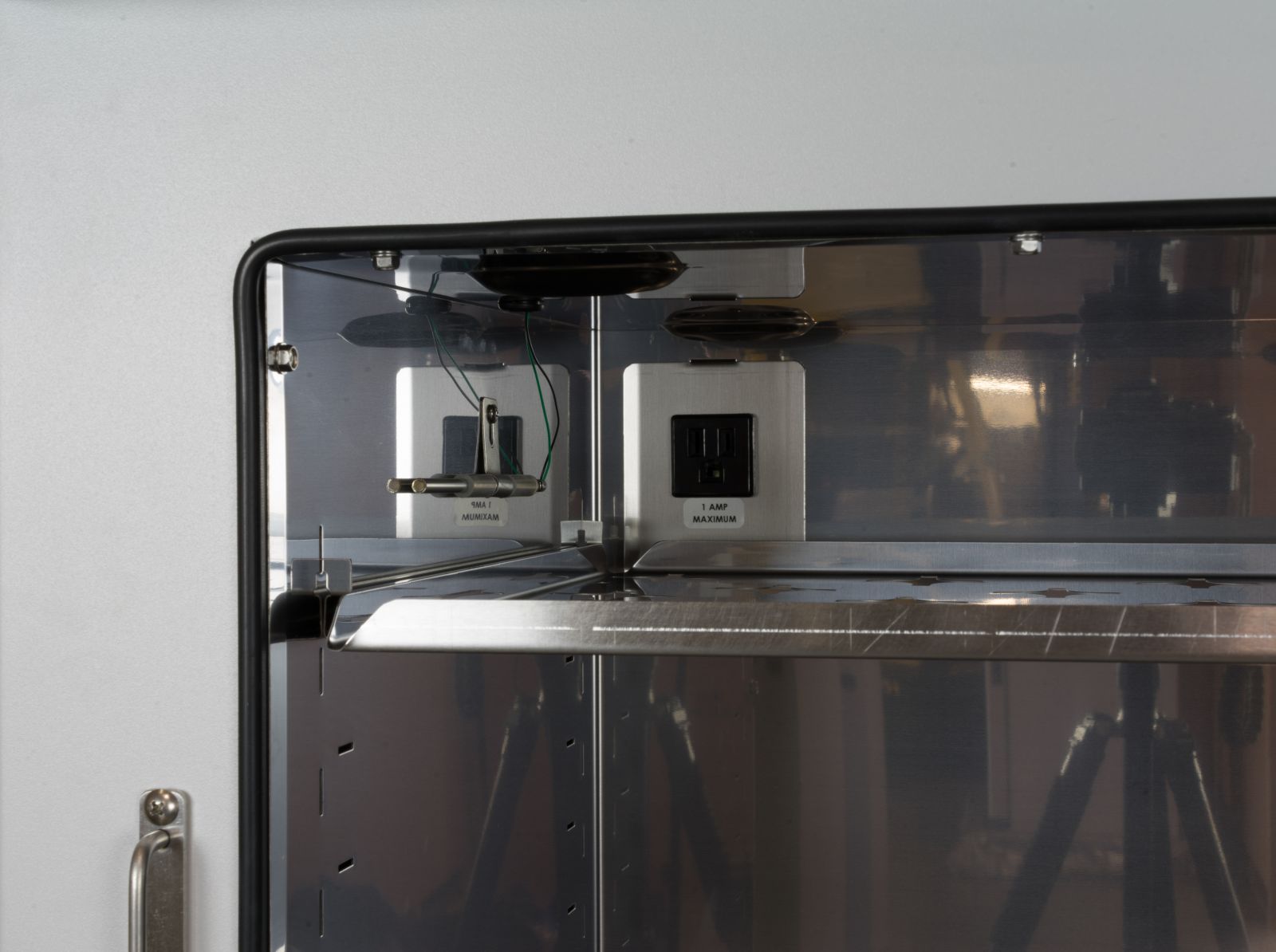

  • Interior outlet

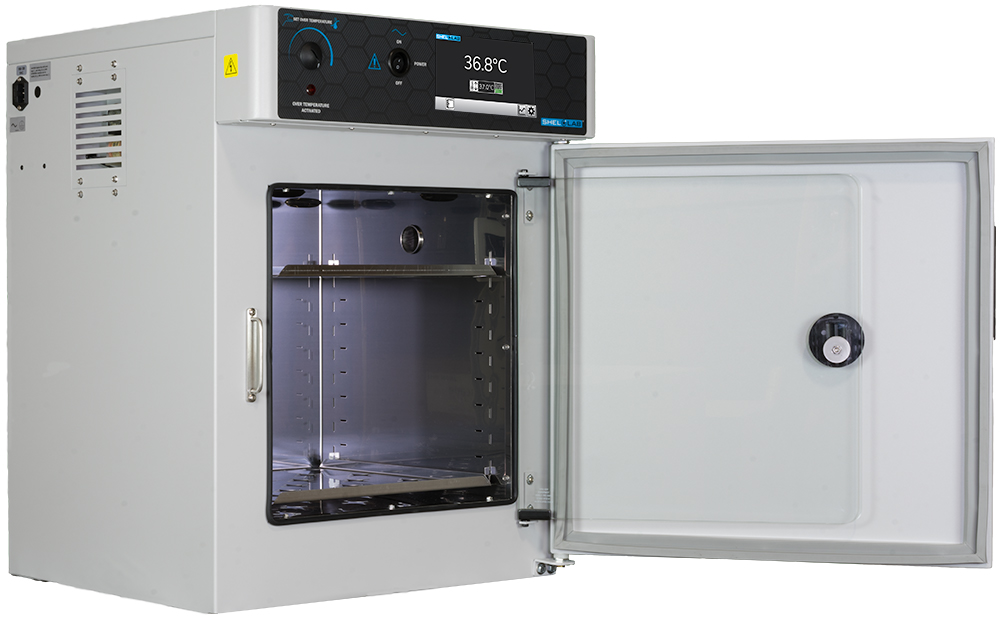

  • Viewing door
  • Stainless steel interior
  • 24 month limited warranty
Ask About Our Extended Warranties*!
*US Domestic Only

Spec sheets available for the SMI2

Model

SMI2

Part ID

SLM222


Exterior Dimensions (W × D × H)

21.3 × 22.3 × 26.0
(541 mm × 566 mm × 660 mm)

Interior Dimensions (W × D × H)

15.0 × 15.0 × 15.2
(381 mm × 381 mm × 386 mm)

Volume

2.0 cu.ft. (56.3 L)

Shelf Dimensions (W × D)

14.3 × 14.3 (363 mm × 363 mm)

Unit Weight

83.0 lbs (37.6 kg)


Interior Metal

430 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +8C - 70C

Temperature Uniformity - Midrange

0.5 °C

Temperature Stability - Midrange

0.1 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

100-120 VAC, 50/60 Hz, 4.5 Amps

Max HVAC Load

1218 BTUs/hr


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLM222 110/120V Manual

SLM222 220/240V Manual

SLM222 Brochure
